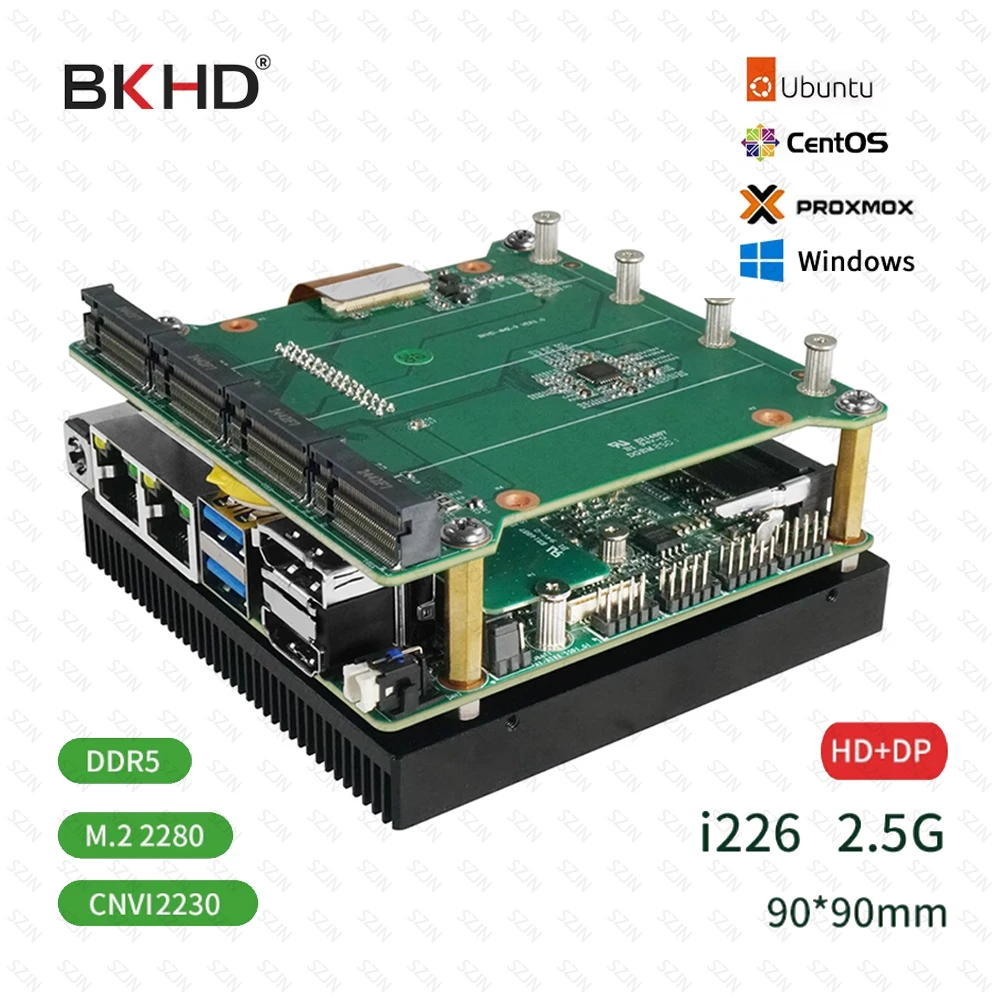

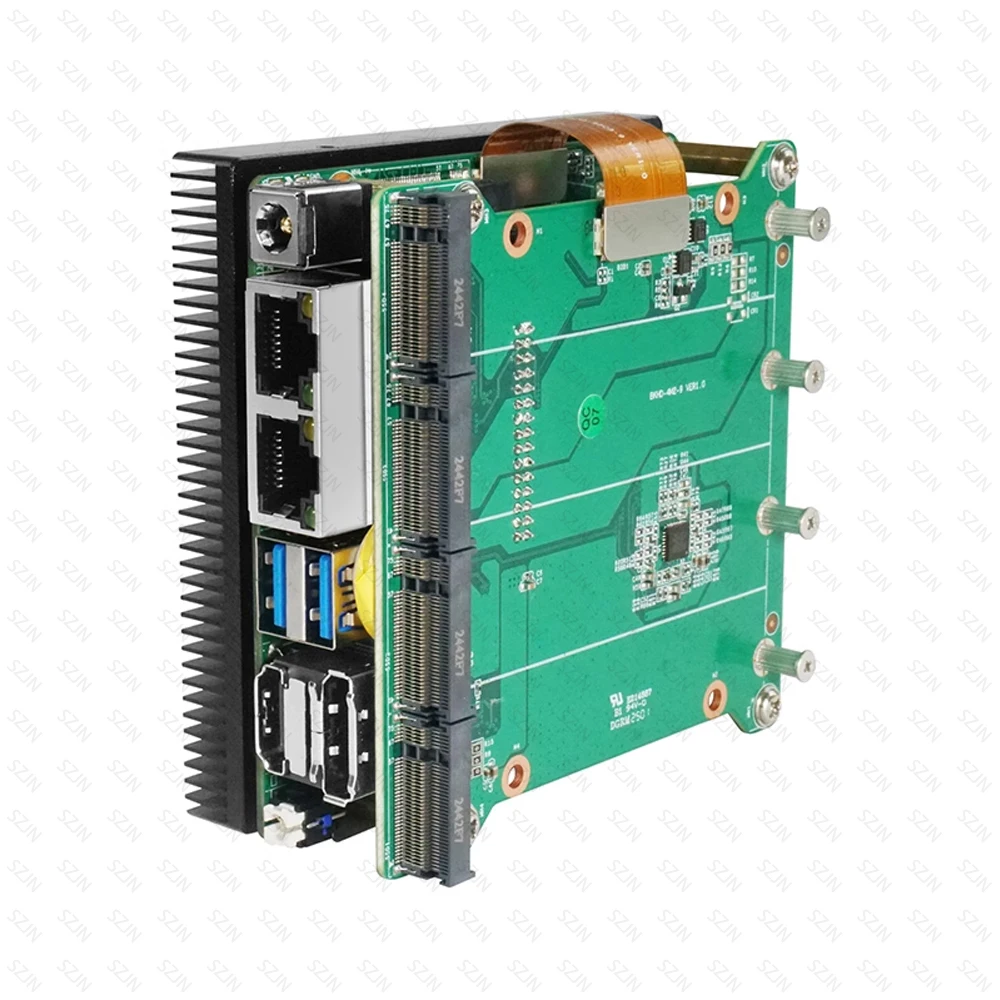

This product includes N100-X86 development board, M2 expansion board, and 12V power supply

If you need to add memory and hard drive, you can leave a message to customer service for a quote. (Please specify the required memory capacity and hard drive capacity)

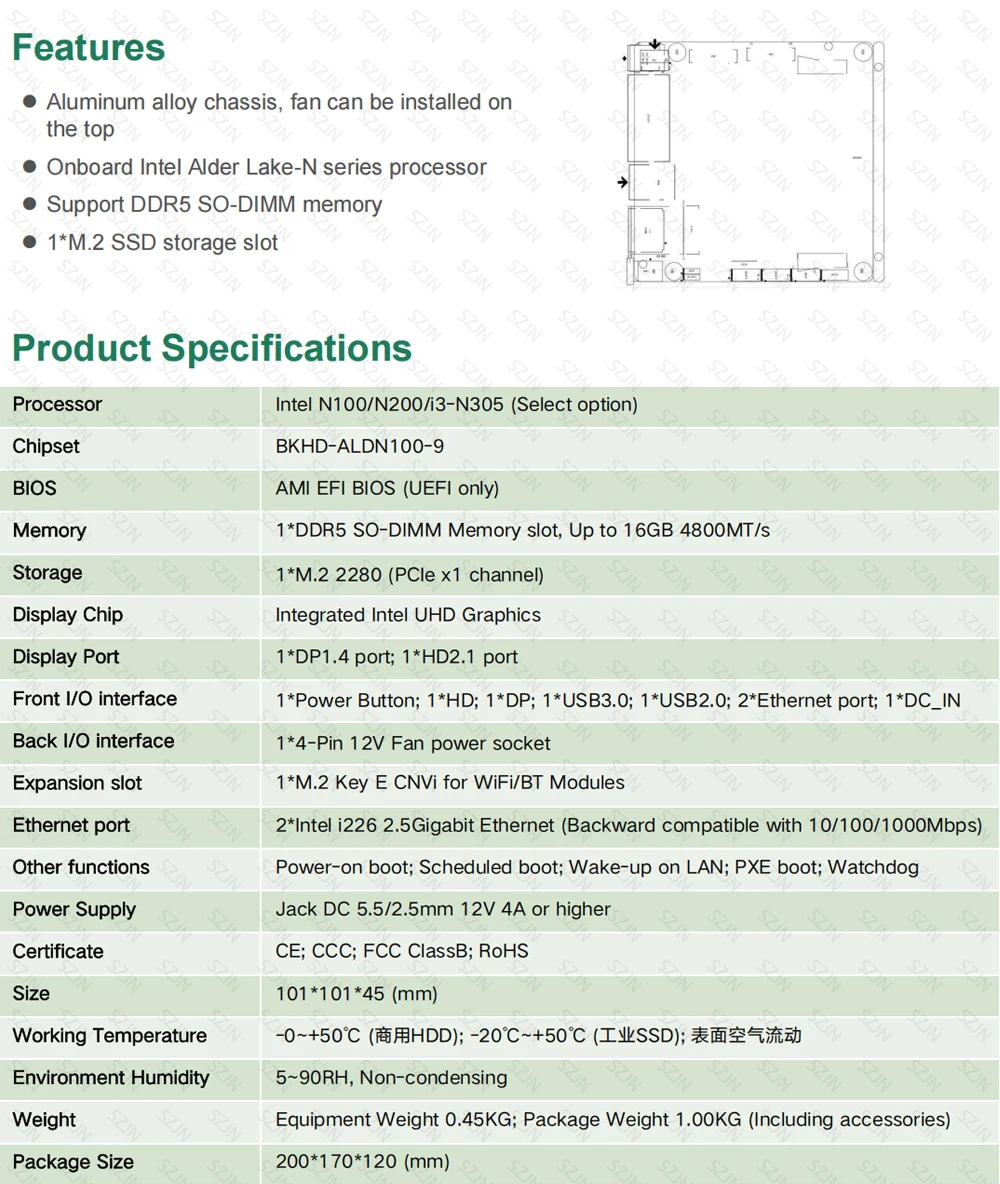

Product Features:

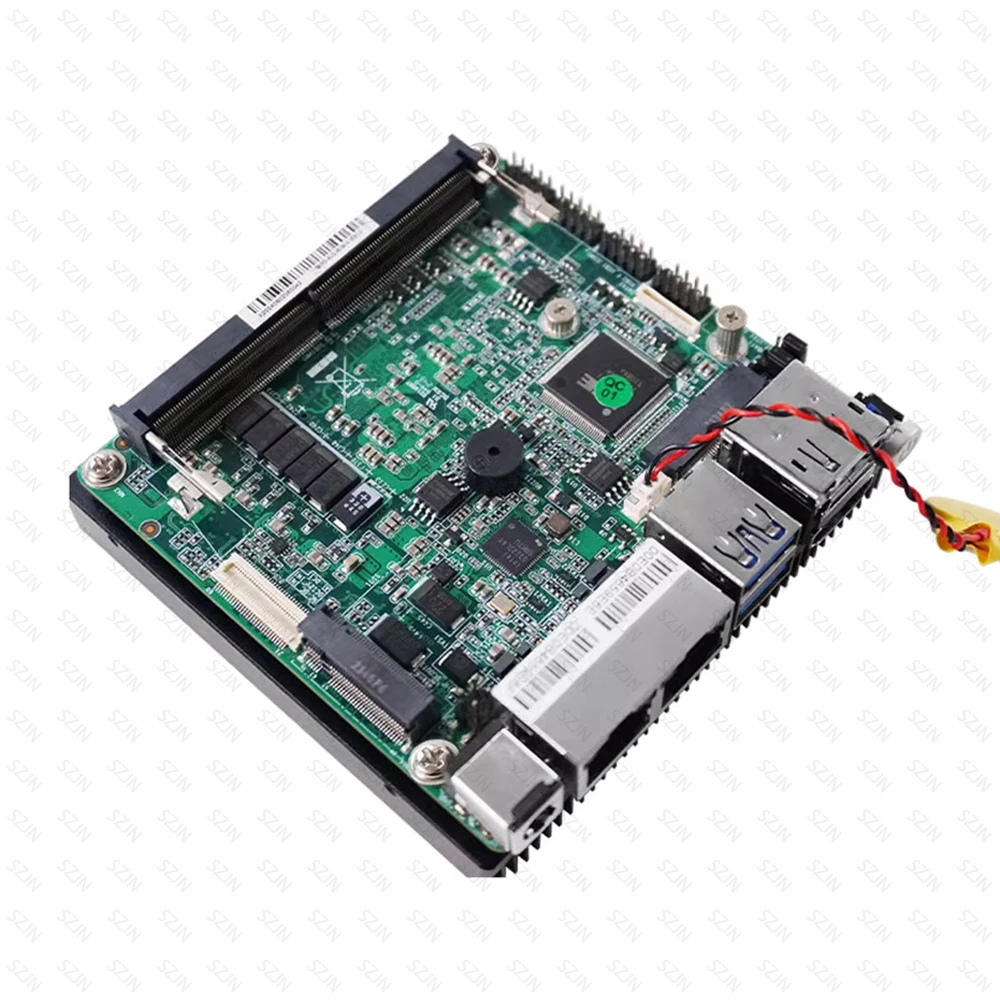

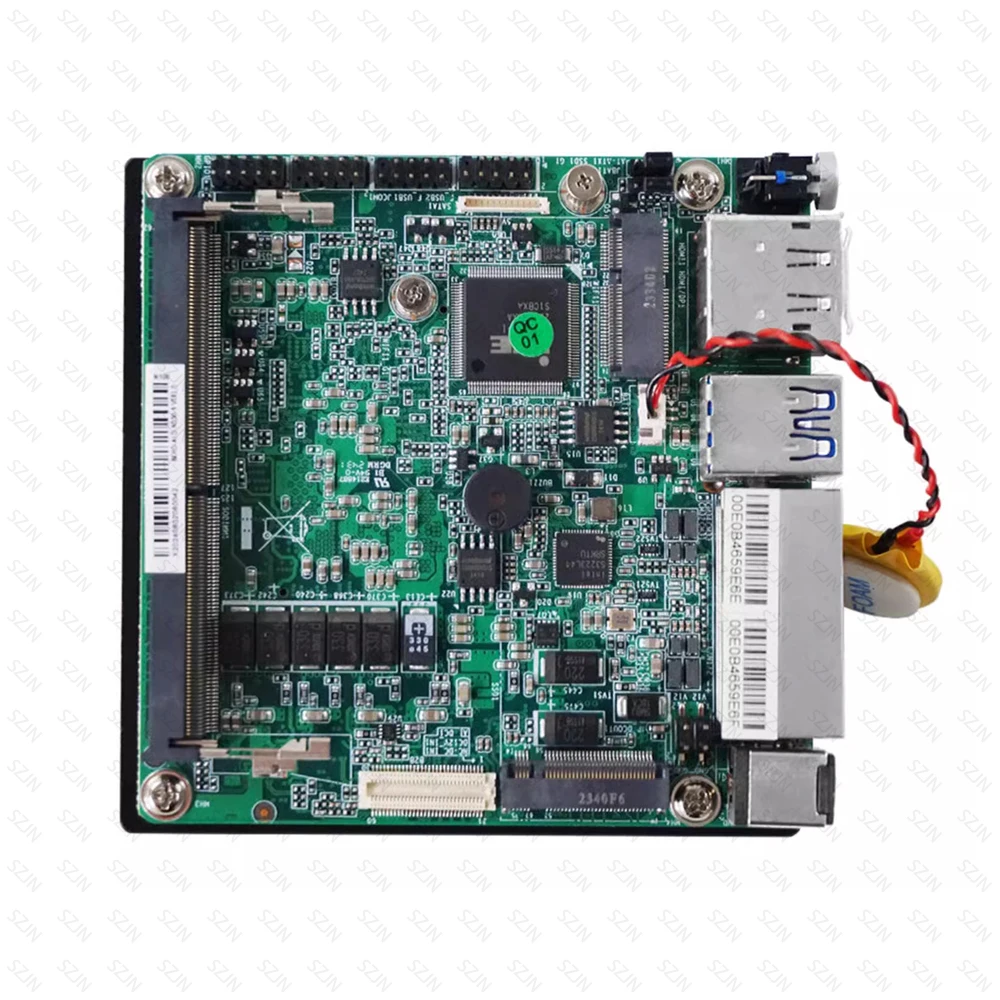

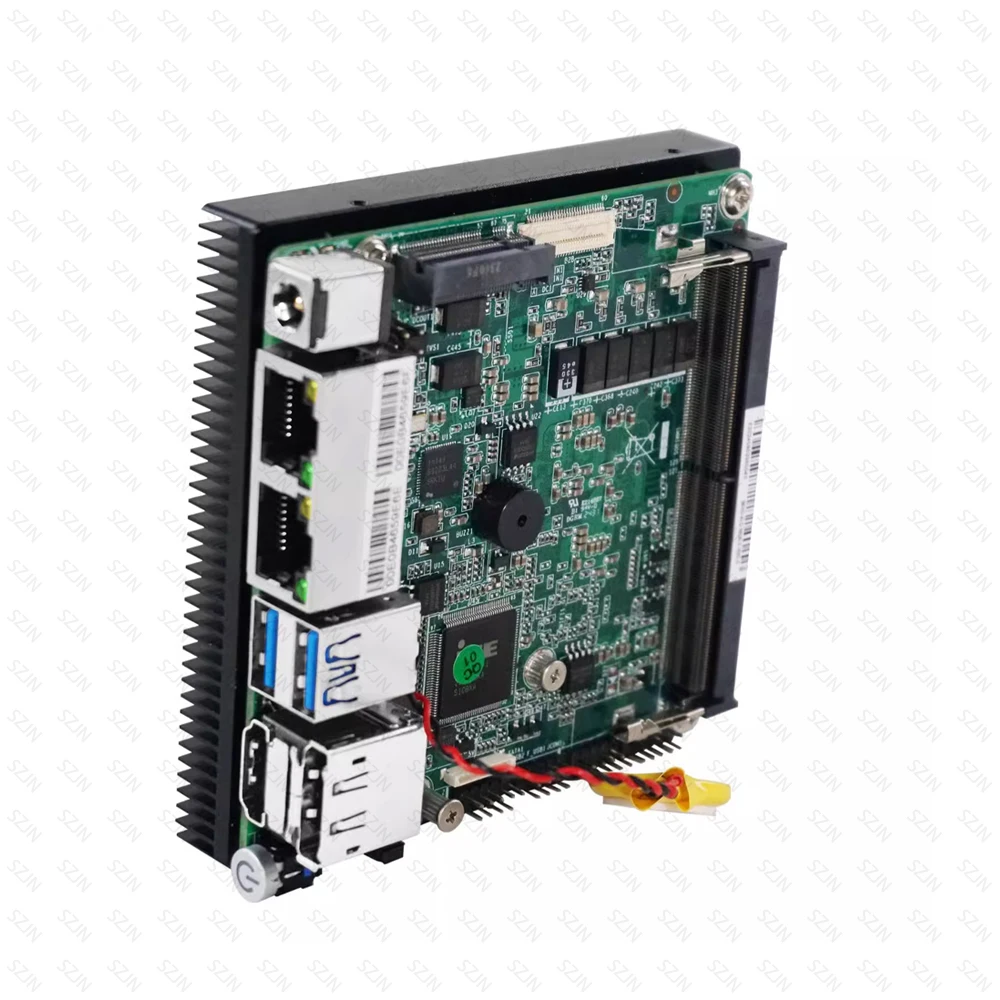

The BKHD H9 N100 2L motherboard is a compact motherboard for embedded systems and small computing devices with a wide range of features and flexibility.
Equipped with Intel N100 processor with 4 cores and 4 threads, it provides high-performance and low-power computing performance for a variety of light computing tasks.
Equipped with 2 Intel i226 2.5G NIC RJ45 ports to provide fast and stable network connection for high-bandwidth demanding applications.
Supports DDR5 SO-DIMM memory for higher memory speed and efficiency up to 16GB 4800MT/s to improve overall system performance.
Equipped with a PCIe 4.0 x1 rate M.2 2280 SSD slot to support fast storage solutions for applications that require fast read and write speeds.
Includes an M.2 Key E 2230 slot with support for CNVi protocol WiFi and Bluetooth modules, providing wireless connectivity options for increased deployment flexibility.

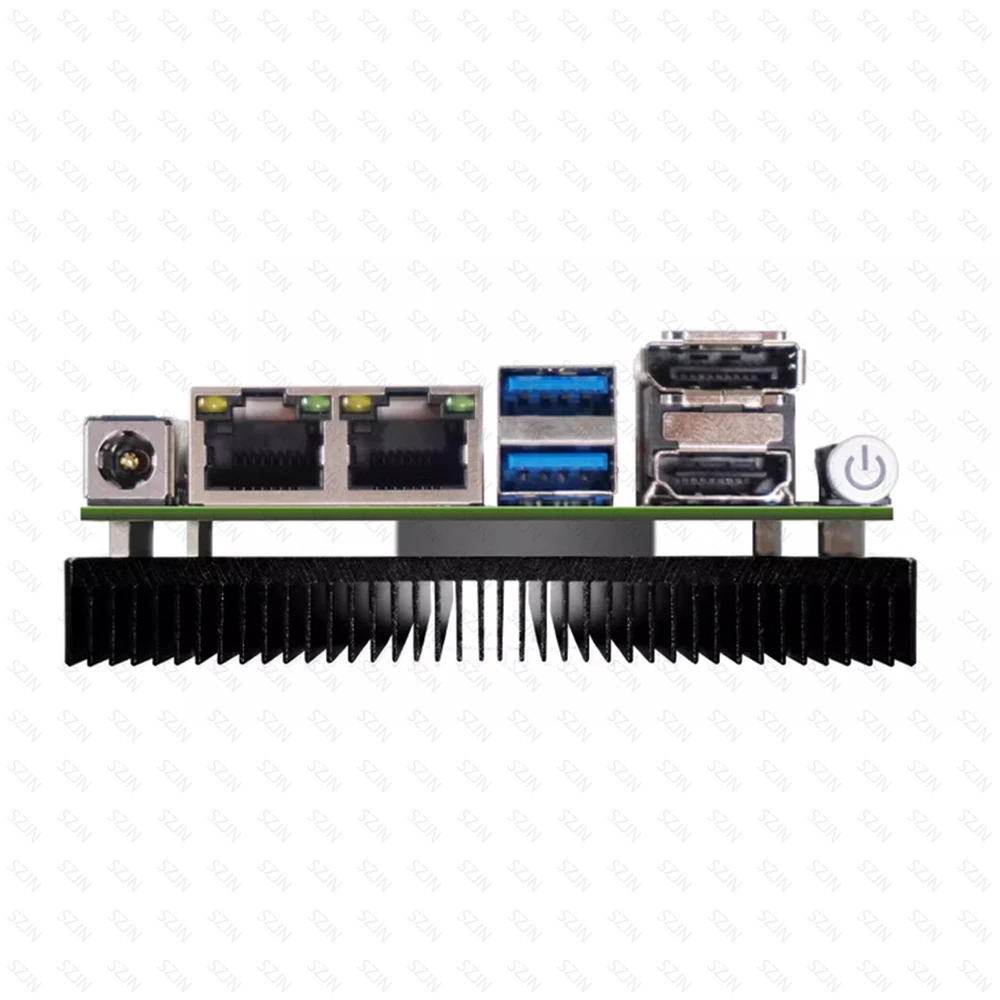

Provides DP and HD video outputs to support high-resolution displays for multimedia applications.
Supports DC 12V power input with DC 5.5/2.5mm jack DC power connector, providing stable and efficient power supply to ensure long-term stable system operation.

Application scenarios:

Embedded systems: Suitable for embedded systems that require stable network connectivity and efficient processing capabilities, such as industrial controls, automation equipment, etc.
IoT devices: Small size, powerful processing capabilities, such as IoT gateways or terminals that support data transfer and management between devices.
Smart Home Gateway: Efficient processing capabilities, multiple network connection options, suitable as the core gateway of smart homes, realizing the interconnection of smart home devices.
Edge computing: Used for edge computing devices, supporting local processing and reducing data transmission delay, suitable for real-time data analysis.
Mini PC: Suitable for workstations or mini PCs used in developer and small office environments, providing sufficient computing power and connectivity options.
