Note: The parcel doesn’t come with the board button battery. When you get the board, please buy a CR2032 button battery to install on the board.

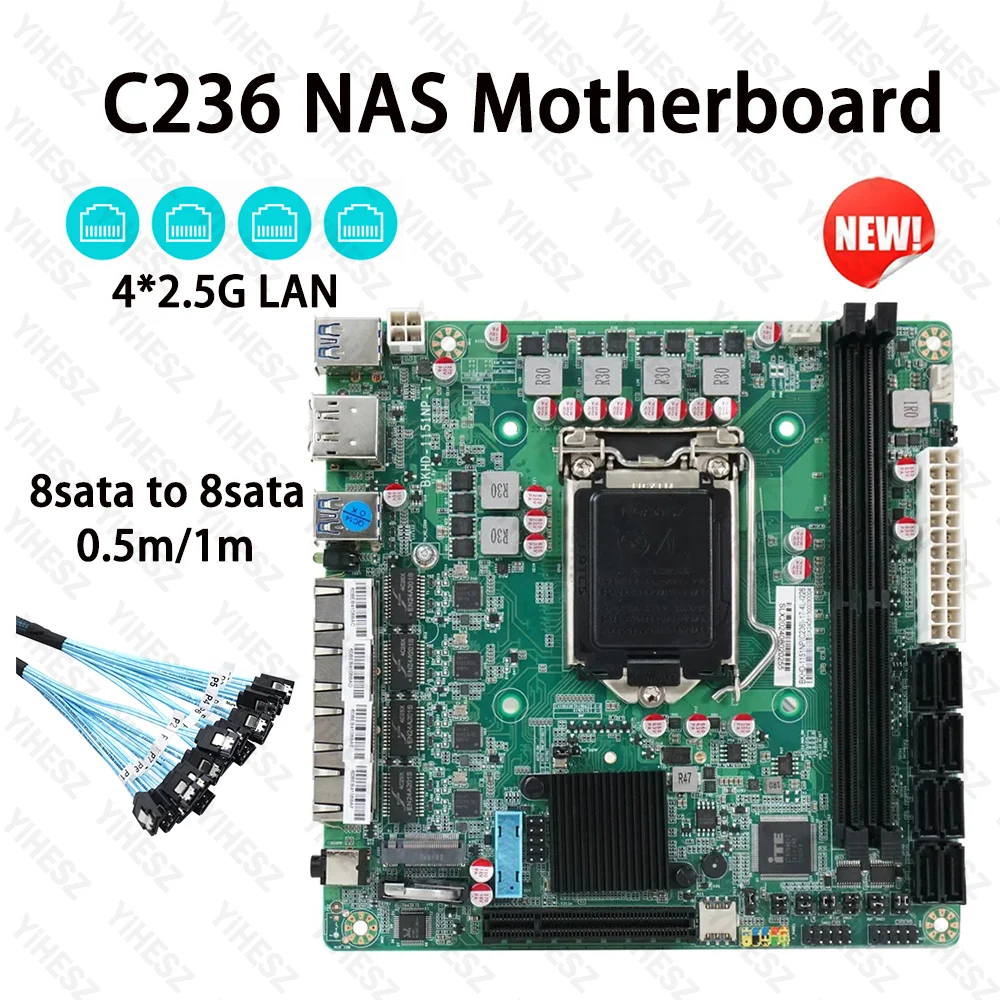

Send the 8-sata cable together with the motherboard
System:
CPU: Supports 6th/7th/8th/9th generation Intel Celeron/Pentium Core i3/i5/i7 processors with LGA1151 architecture
Chipset: Intel C236 chipset
RAM:
2 x DDR4 288PIN DIMM slots (memory support voltage 1.2V)
Support DDR4-2400 Mhz
Single stick supports up to 16 GB, depending on CPU model
Storage function:
8× SATA3.0 interfaces
1×M.2(2280) solid state drive interface (only supports NVME protocol PCIE3.0 4X)
Expansion Bus:
1×PCI-E 3.0 8X slot
1×MINI PCIE interface
Network function: Onboard Intel I226 2.5G network card chip 4 network port design
Display function: 1×DP, 1×HDMI interface YiHESZ

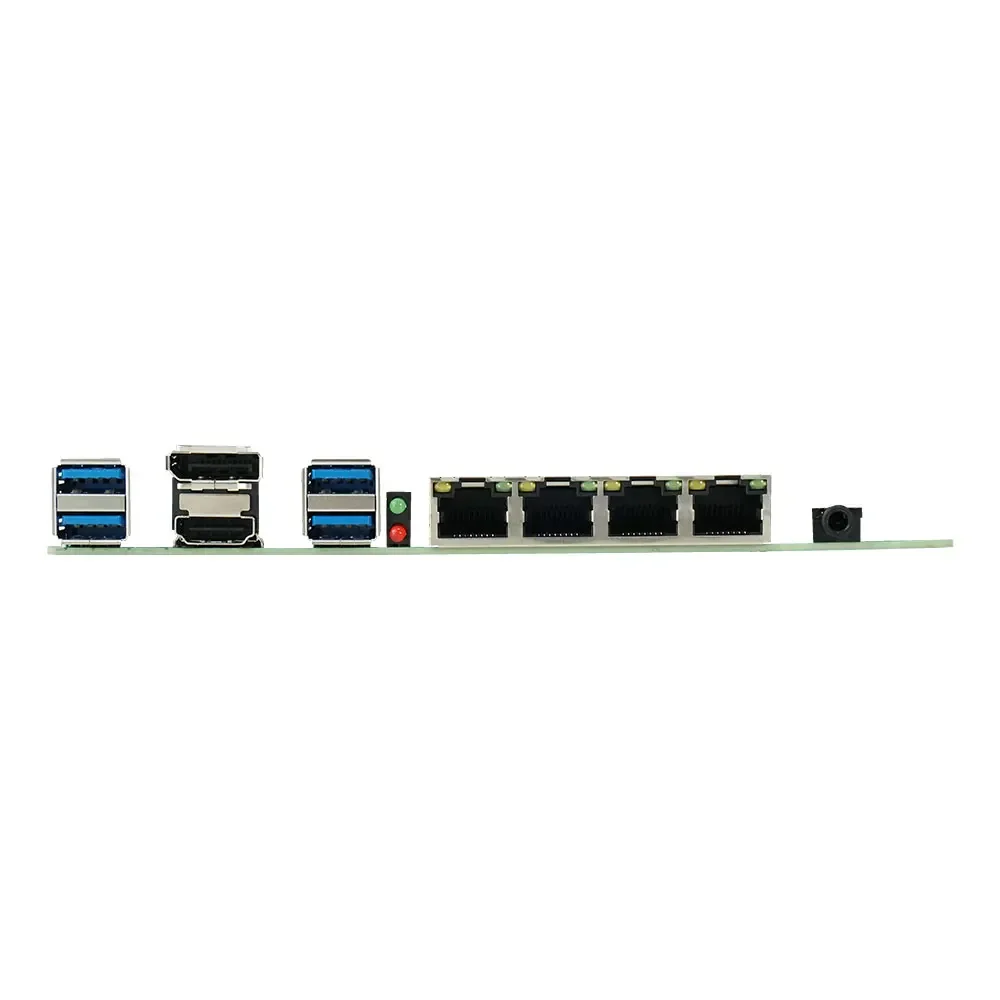

Back panel I/O:
1×AUDIO audio interface
1×LED indicator
4×LAN interface
2×Dual-layer USB3.0 interface
1×DP+HDMI interface
Onboard I/O:
1×24 pin ATX power input
1×4 pin ATX power input
8×7pin SATA interface
1×FUSB3.0 pin (can connect 2 external USB3.0 interfaces) yihesz
1×Front panel interface (F_PANEL)
1×JGPIO pin (8-way)
2×COM interface (9pin)
1×CPU fan power socket
1×System fan power socket
1×SIM card slot
Mechanical & Environmental:
Power supply: ATX input
Dimensions: 170mm x 170mm
Working temperature: -20~55℃
Ambient humidity: 5~90%RH relative humidity, no condensation
