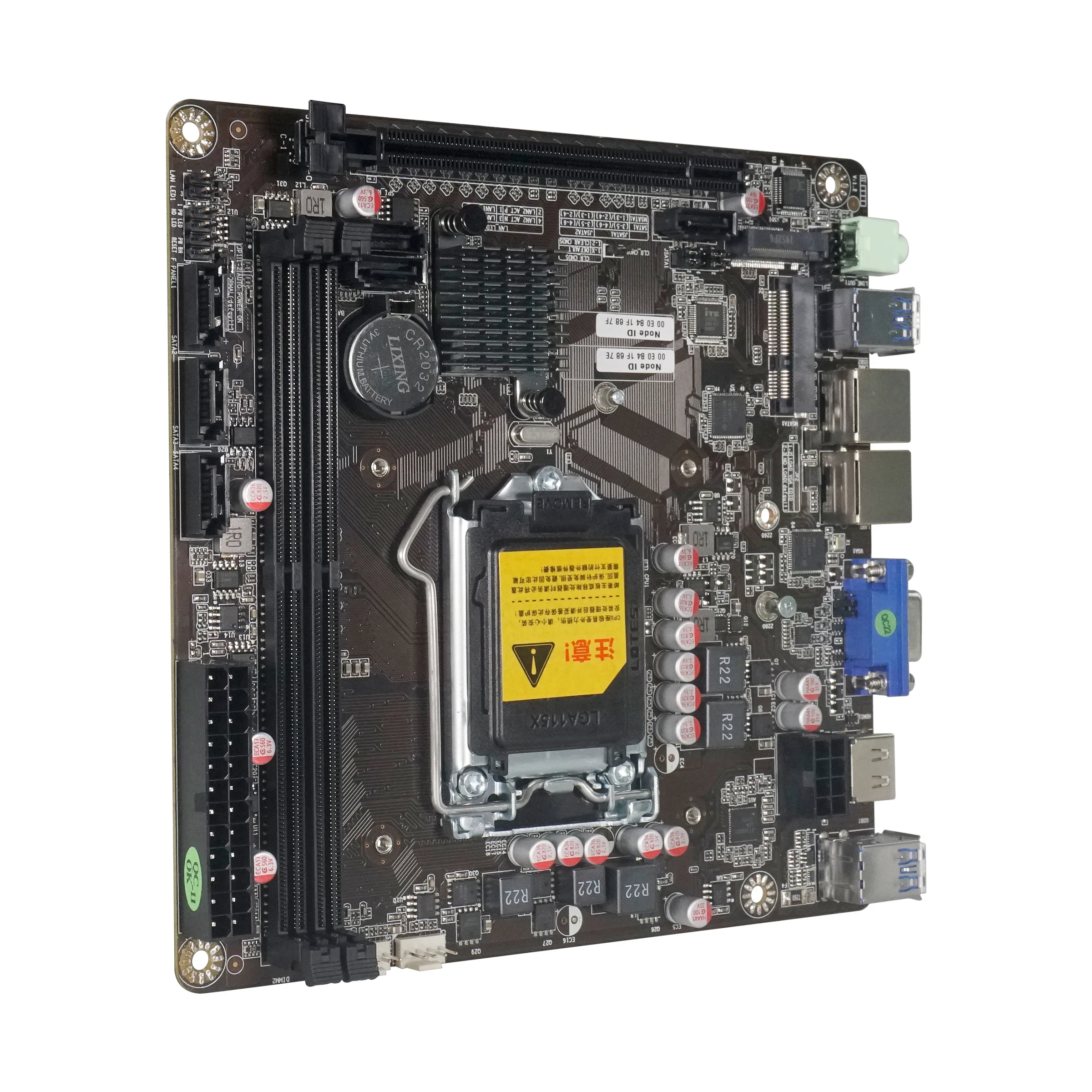

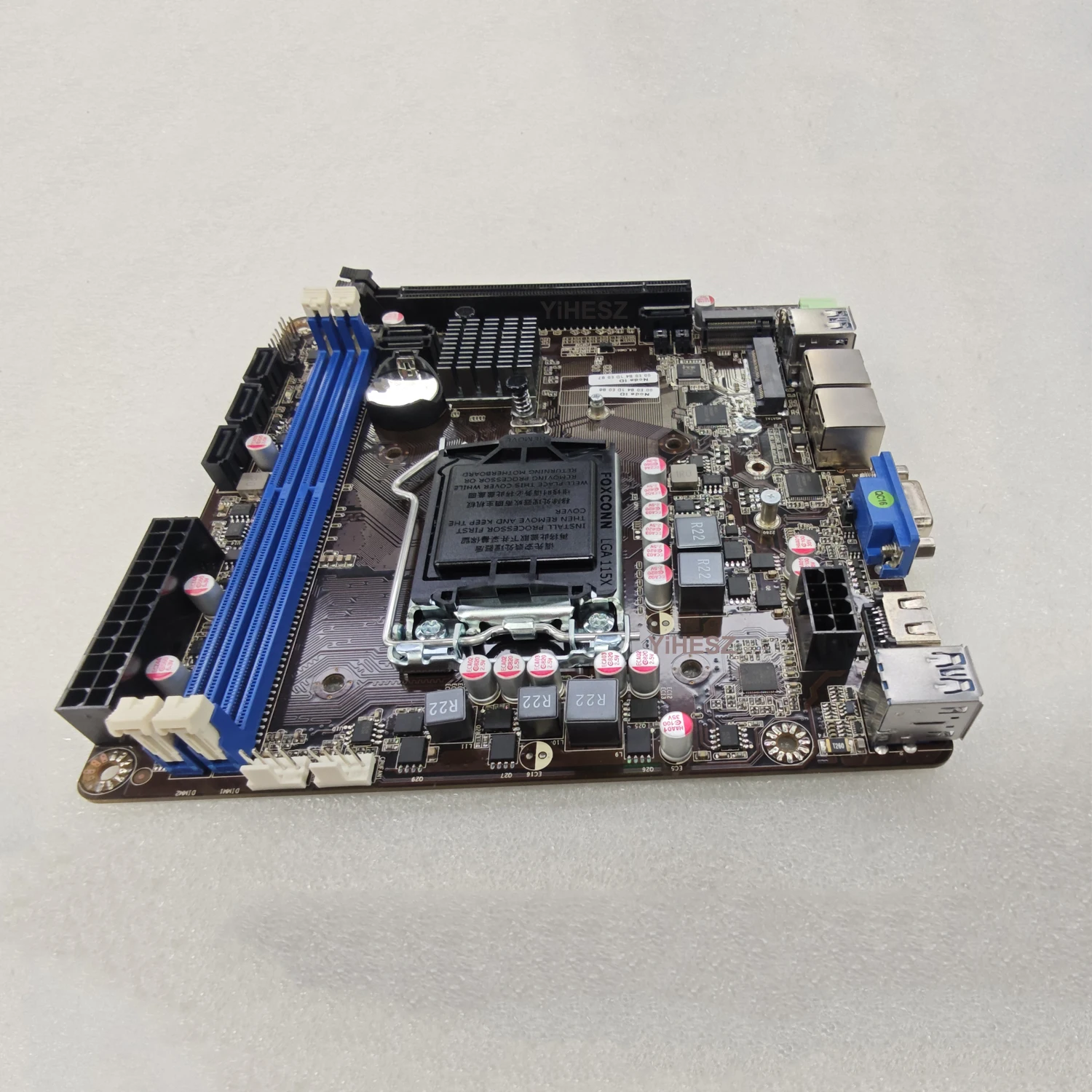

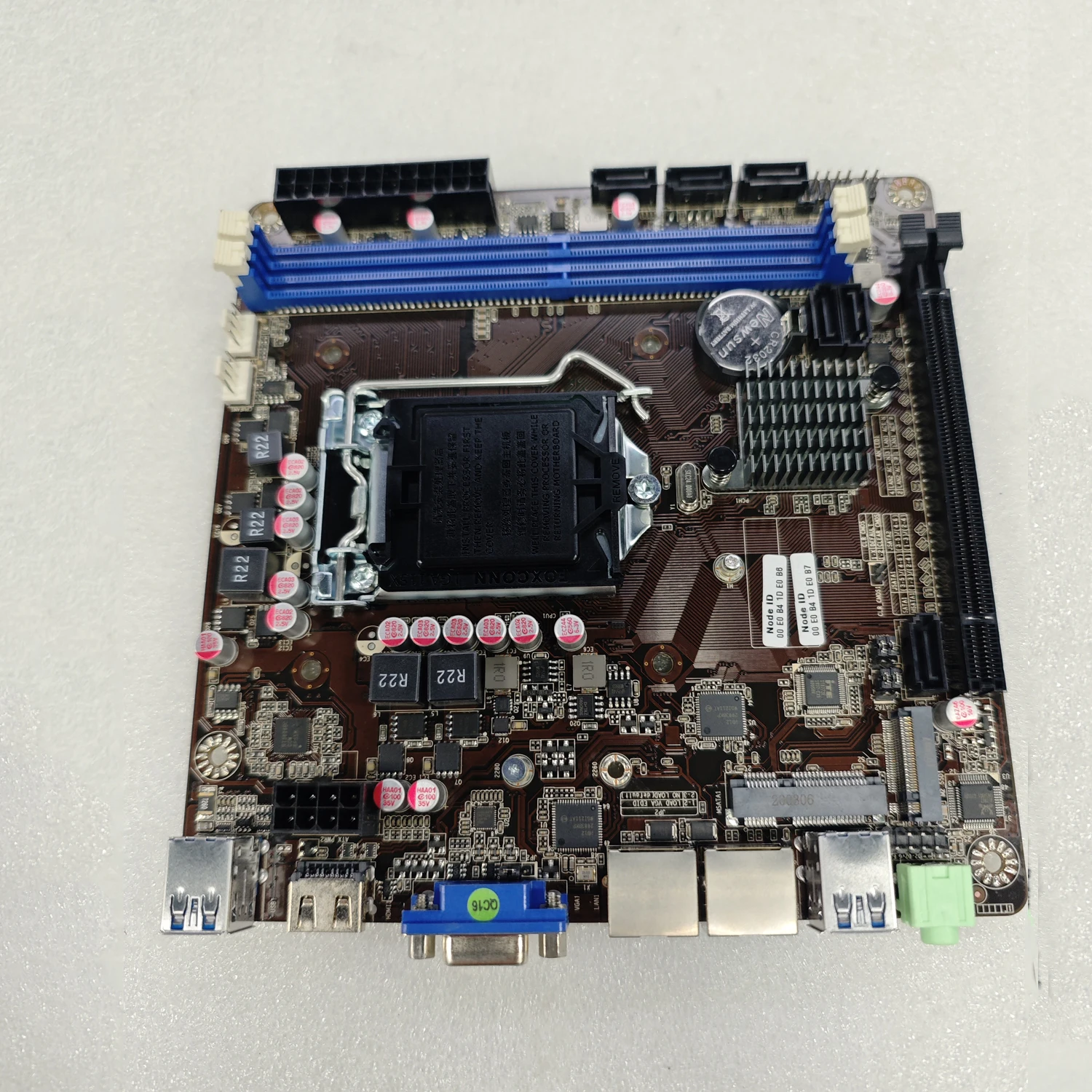

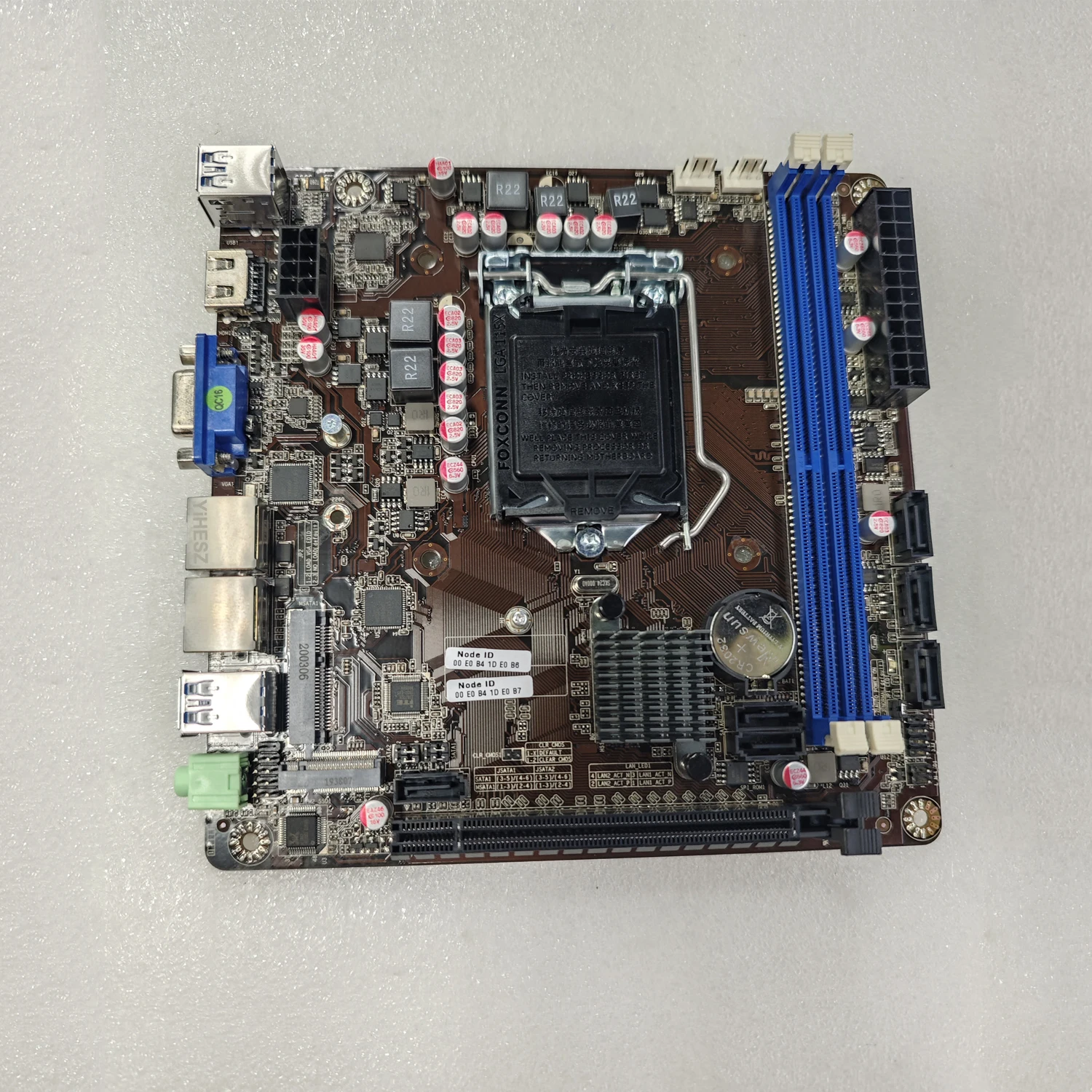

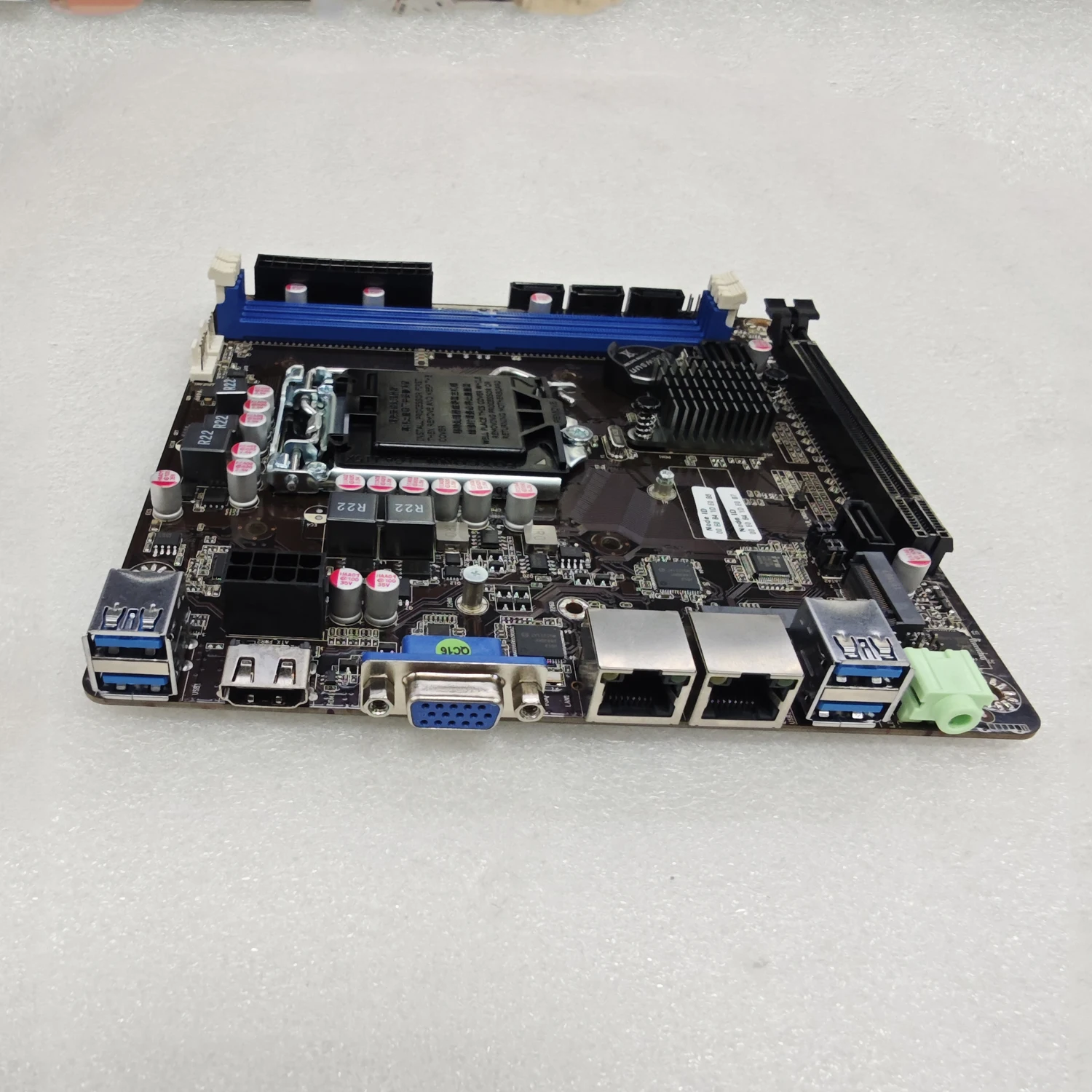

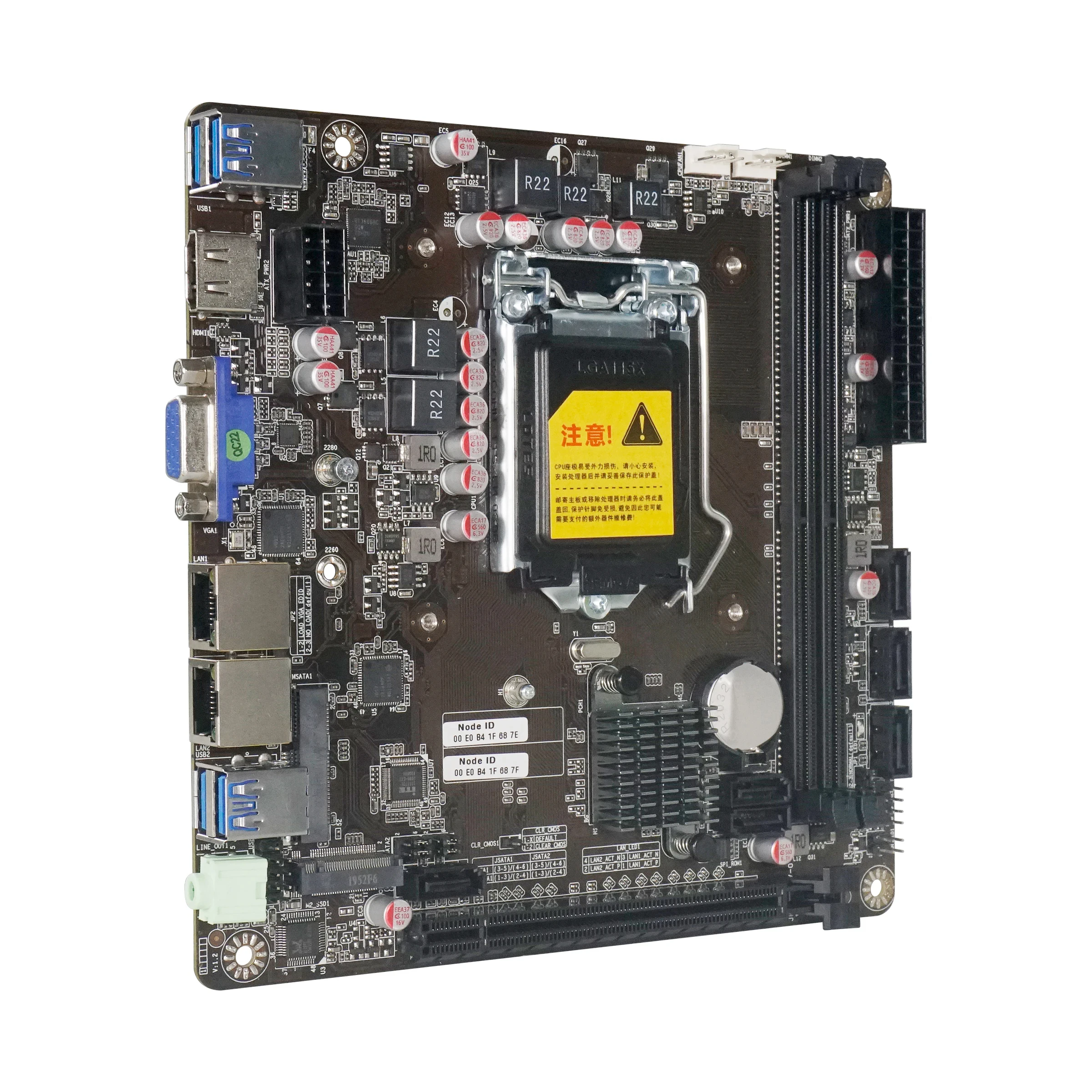

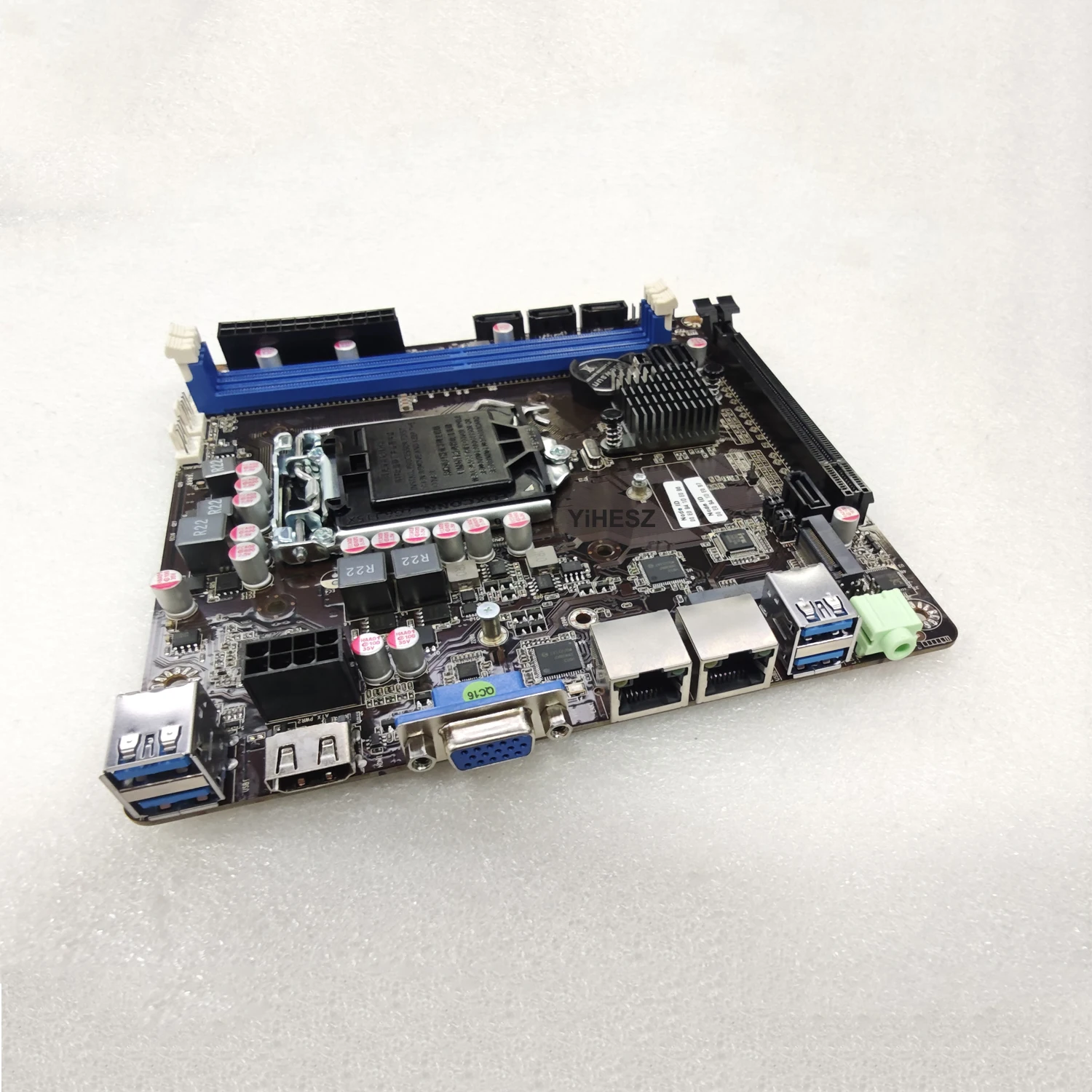

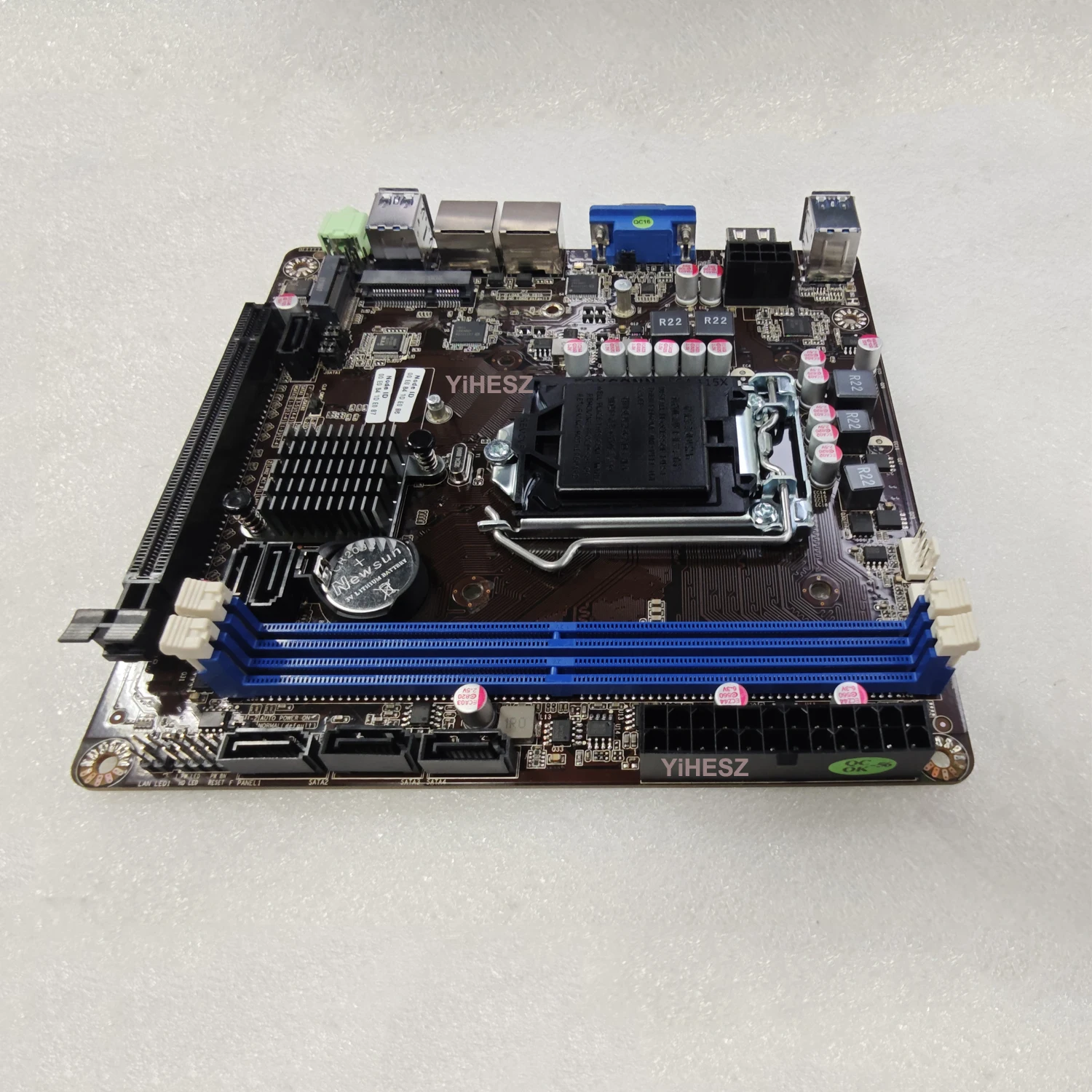

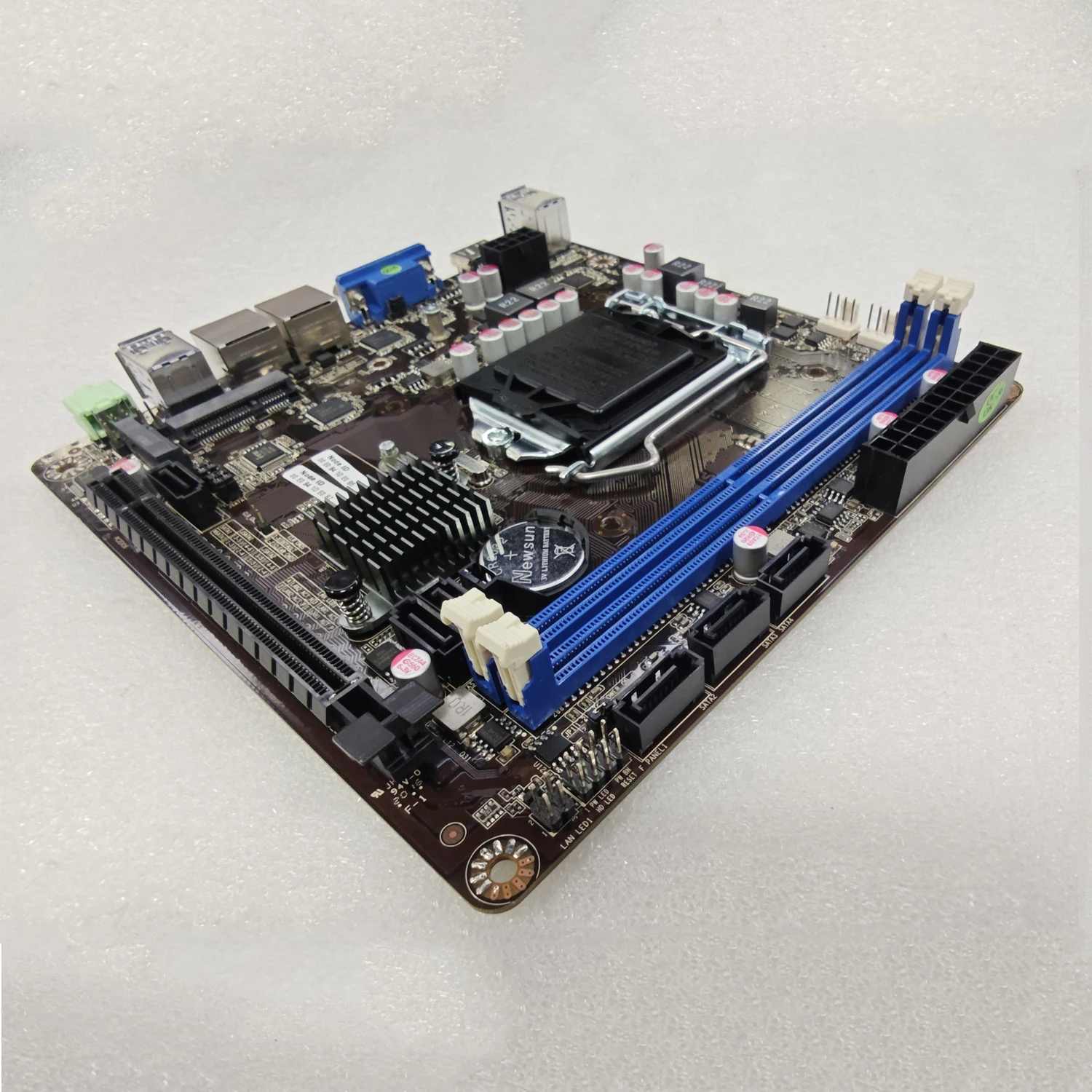

B365 Mini-ITX Motherboard LGA 1151 6 bay NAS Board Dual Gigabit 211AT M.2 Nvme MSATA 6 SATA Support Raid i3/i5/i7 6/7/8/9th PCIE

The Only motherboard option only include 1pcs B365 motherboard, not include CPU and RAM.

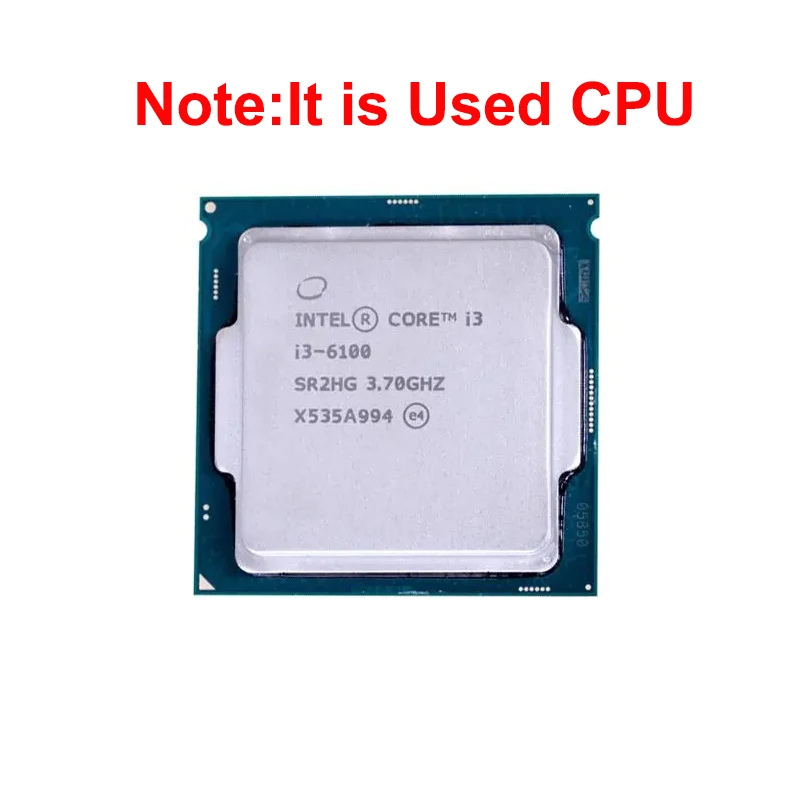

The Motherboard+CPU option include 1 pcs B365 motherboard and 1 pcs used i3-6100 CPU.

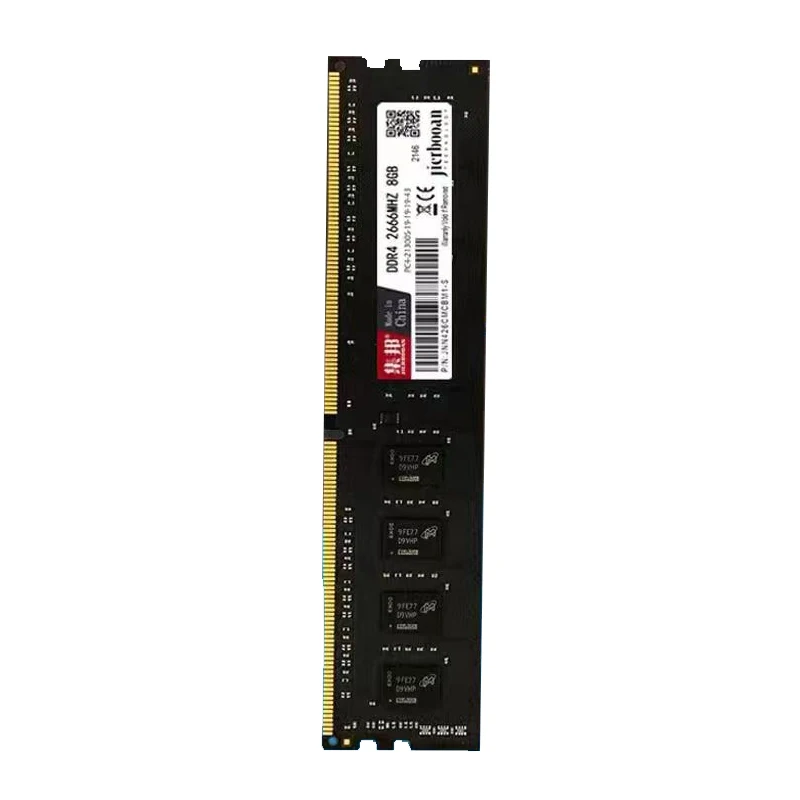

The Motherboard+CPU+RAM option include 1 pcs B365 motherboard , 1 pcs used i3-6100 CPU and 2 pcs 8GB DDR4 2666Mhz RAM.

Note:The motherboard doens’t come with the button battery. When you install the motherboard, please buy a button battery to install on the board.

The color of RAM slot has black color and blue color, we will send randomly.

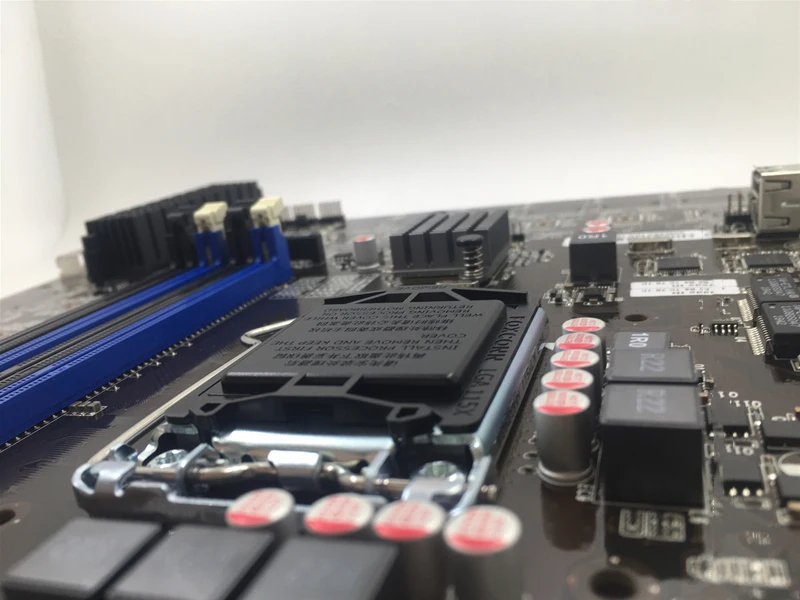

This motherboard is B365 chip, LGA 1151 pins,

Supports 6/7/8/9 generation CPU, supports modified CPU, supports i9-9 generation es and other CPUs,

does not support Xeon CPU;

The motherboard has dual memory slots DDR4, the single RAM maximum up to 32G, and does not support ecc Memory;

Supports 6 sata3.0 hard drives, the maximum capacity is currently not limited, 18T/20T is supported;

Supports 1 M.2 nvme + 1 MSATA, supports Raid array,

Does not support wifi wireless,

Supports PCIe expansion, and can be expanded to PCIe 10 Gigabit network card, PCIe four-port Gigabit network card, graphics acquisition card, etc.;

The motherboard is powered by 220V 24PIN ATX Power and can be used with Snail Star and other chassis for NAS esxi/openwr, etc.,

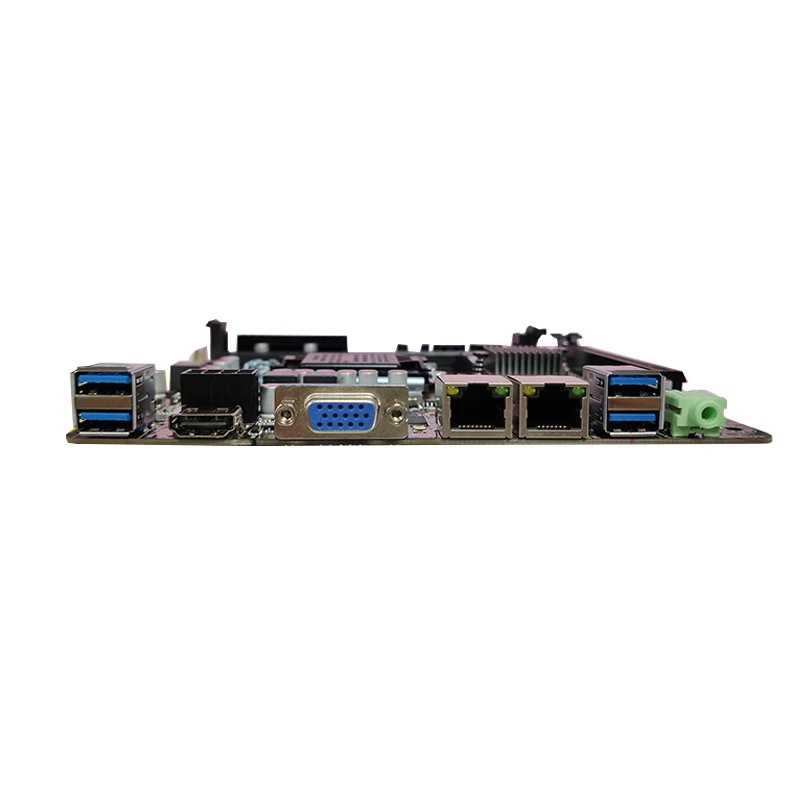

And it is a dual Gigabit network card Intel 211AT,

Supporting M.2 nvme+6 sata or M.2+MSATA+5 sata;
