Orbital-type Chain Saw For Outdoor Use In Mines With Wireless Control Brick Chain Quarry Saw Marble Cutting Machine
| Model NO. | SMT-CS2500/4000 |
| Trademark | haineng |
| HS Code | 8464109000 |
| Production Capacity | 5pieces/Per Months |
| Origin | China |
| Certification | ISO,CE |
| Transport Package | Plastic Film |
Product Description

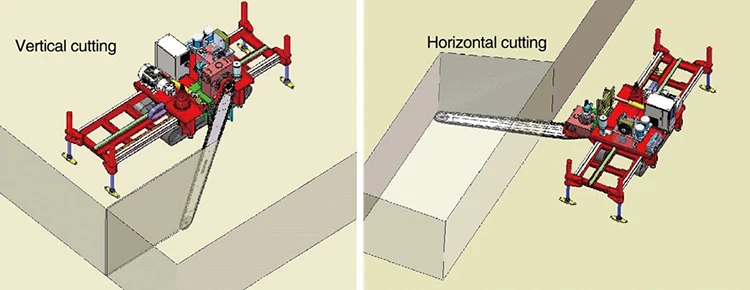

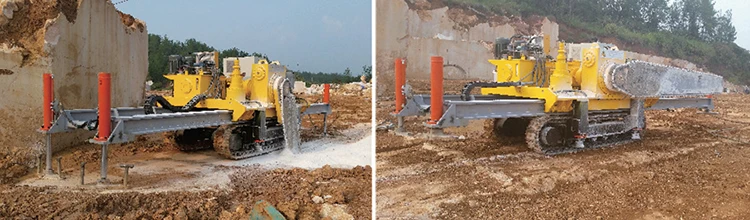

Chain Saw For Crawler is the enhanced one of orbital-type chain saw, the biggest characteristic of the machine is equipped with a pedrail walking itself, moving conveniently and flexibly.The machine host and pedrail move alternately in working, which don’t need to cooperate with other hoisting machinery moving track, suitable for outdoor use in mines.

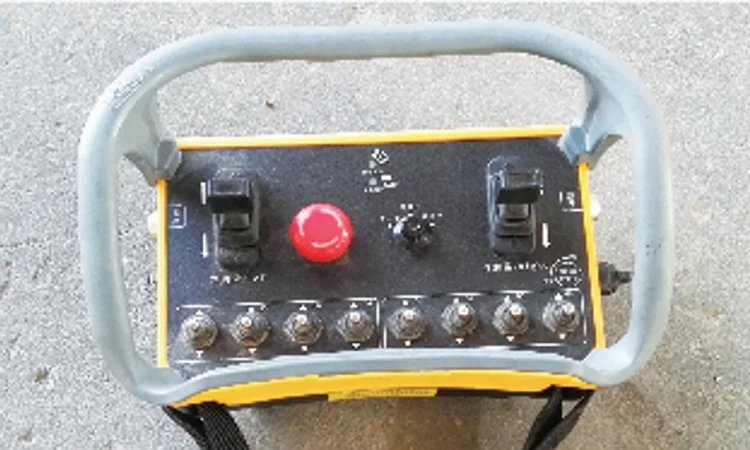

![]() | The all machine is driven by a radio remote control (wireless) to allow the operator to follow all operation at a safe disance, suitable for working outside. |
![]() | ![]() |

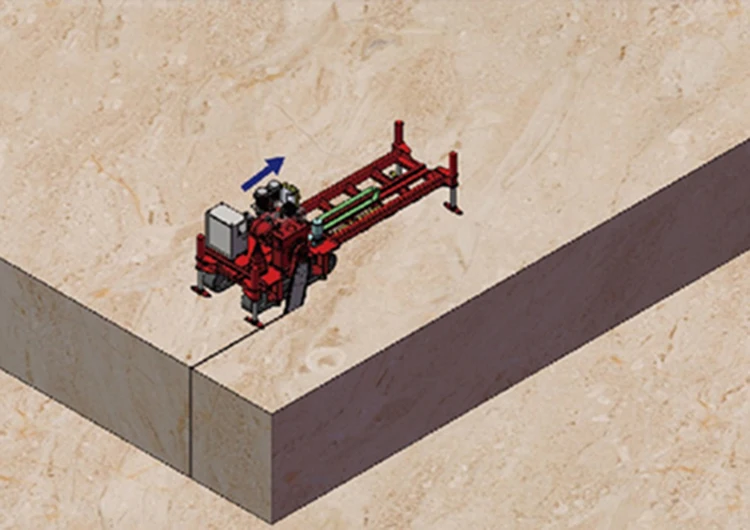

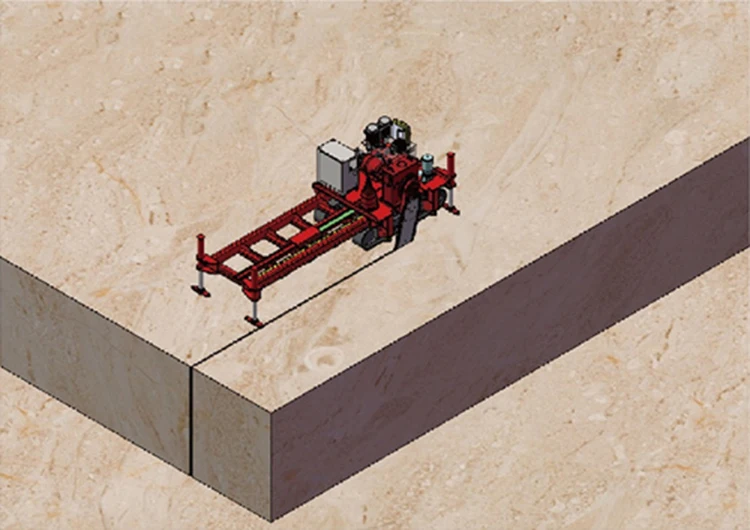

| Cutting from left | Cutting to the right end of the rail |
![]() | ![]() |

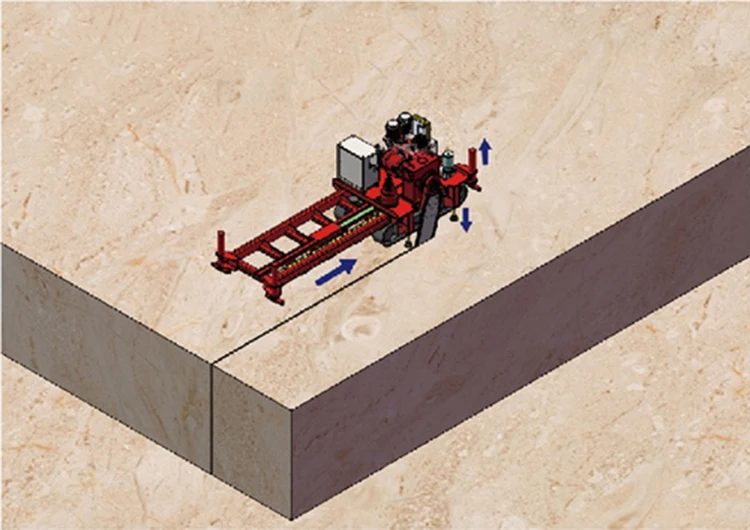

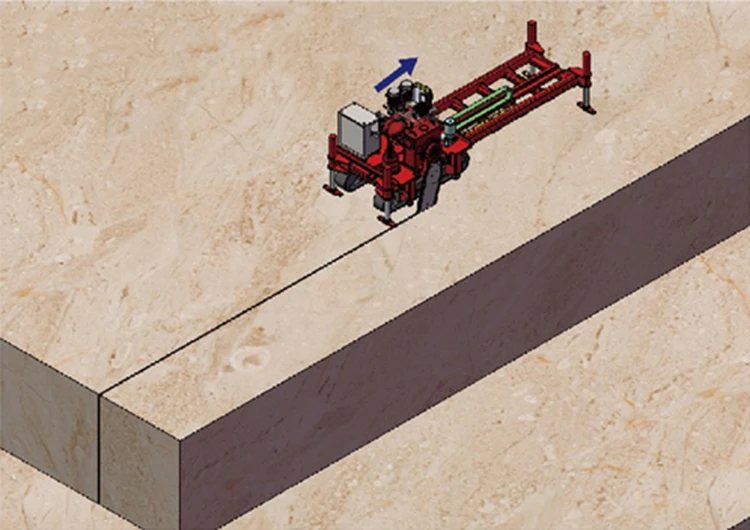

| The oil-cylinder makes the rail stretching | Cycling starting cut from the left |
Product Parameters
Chain saw for crawler | |||
Model | Unit | SMT-CS2500 | SMT-CS4000 |
Maximum useful cut depth | mm | 2500 | 4000 |
Cutting width | mm | 40 | 40 |
Cutting speed | m/h | 0~4 | 0~4 |
Installed power | kw | 55 | 75 |
Weight | kg | 13000 | 14500 |
Dimensions | mm | 6500×2250×2100 | 6500×2250×2100 |
Processing

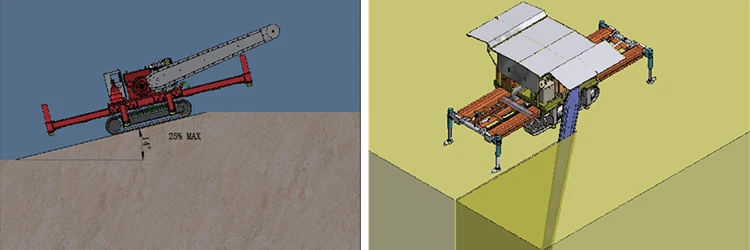

The machine can move on the uneven ground, allowing the machine to overcome inclined surfaces up to 25%(14°)
