Products Description
Parameter

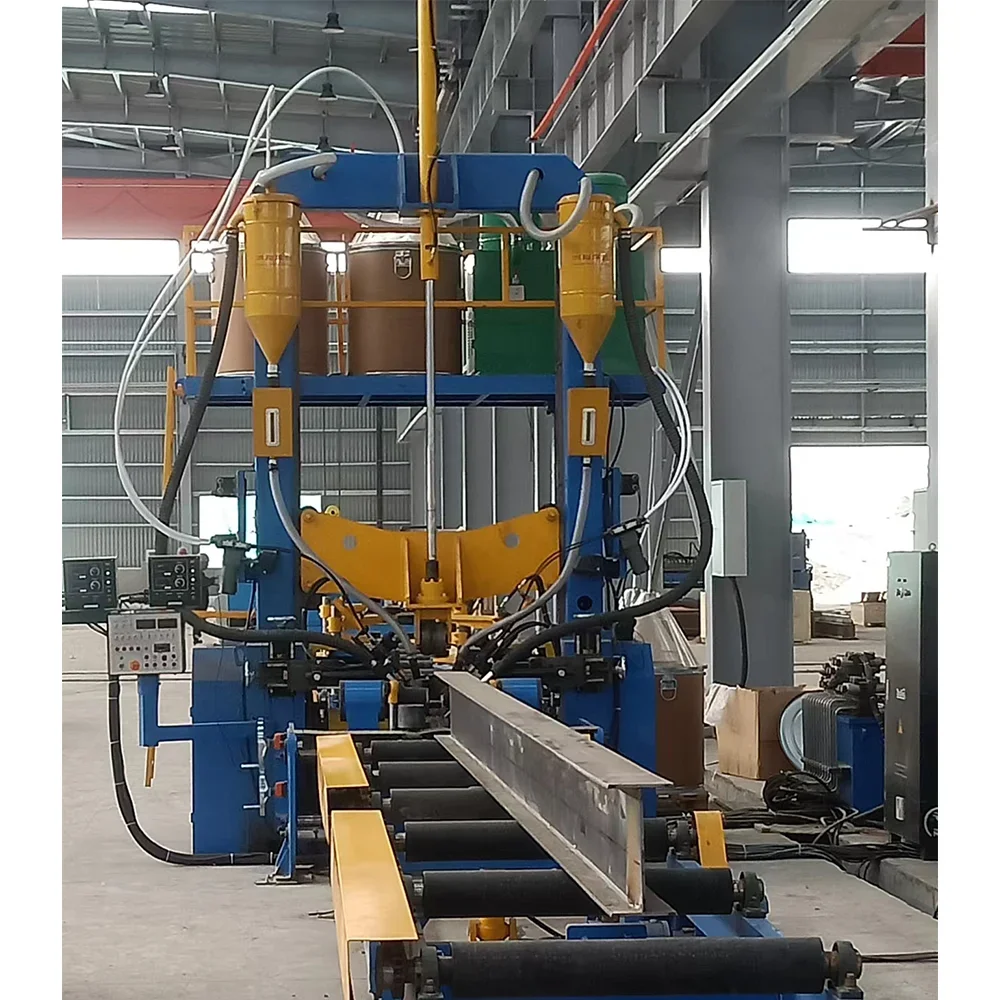

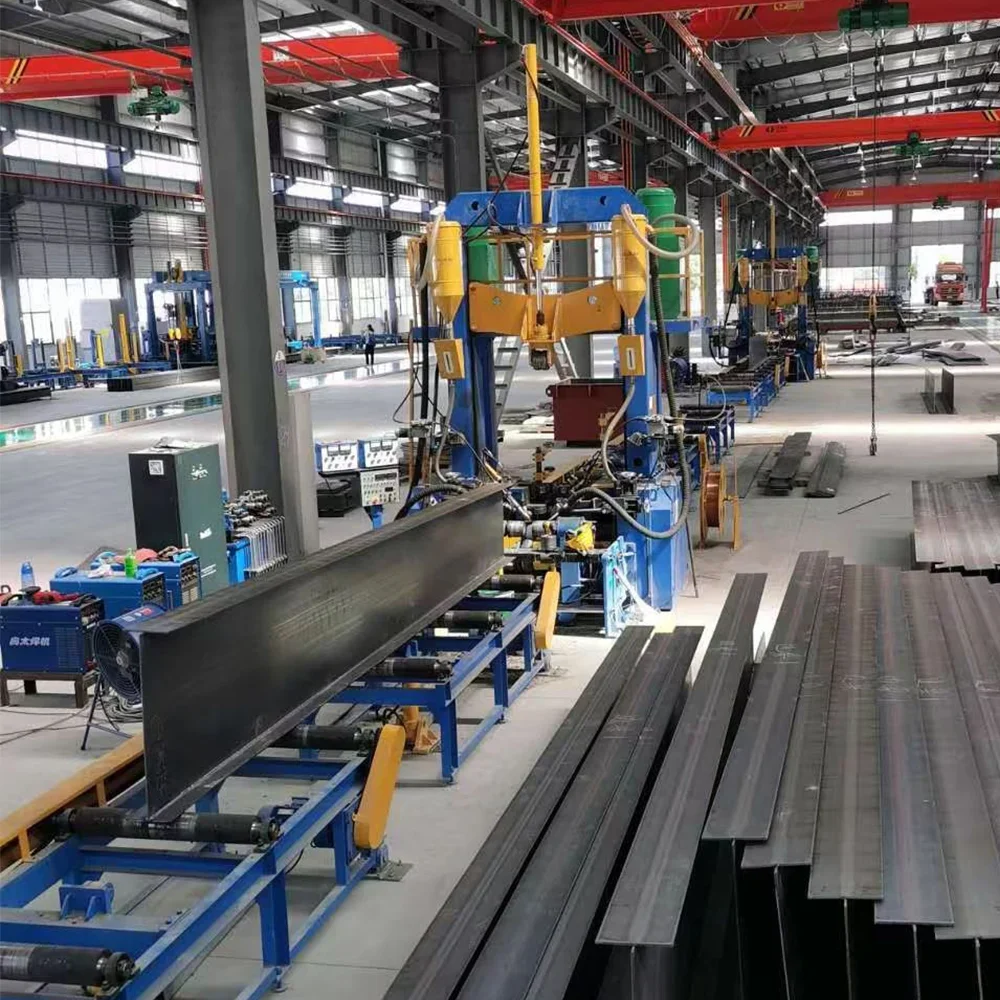

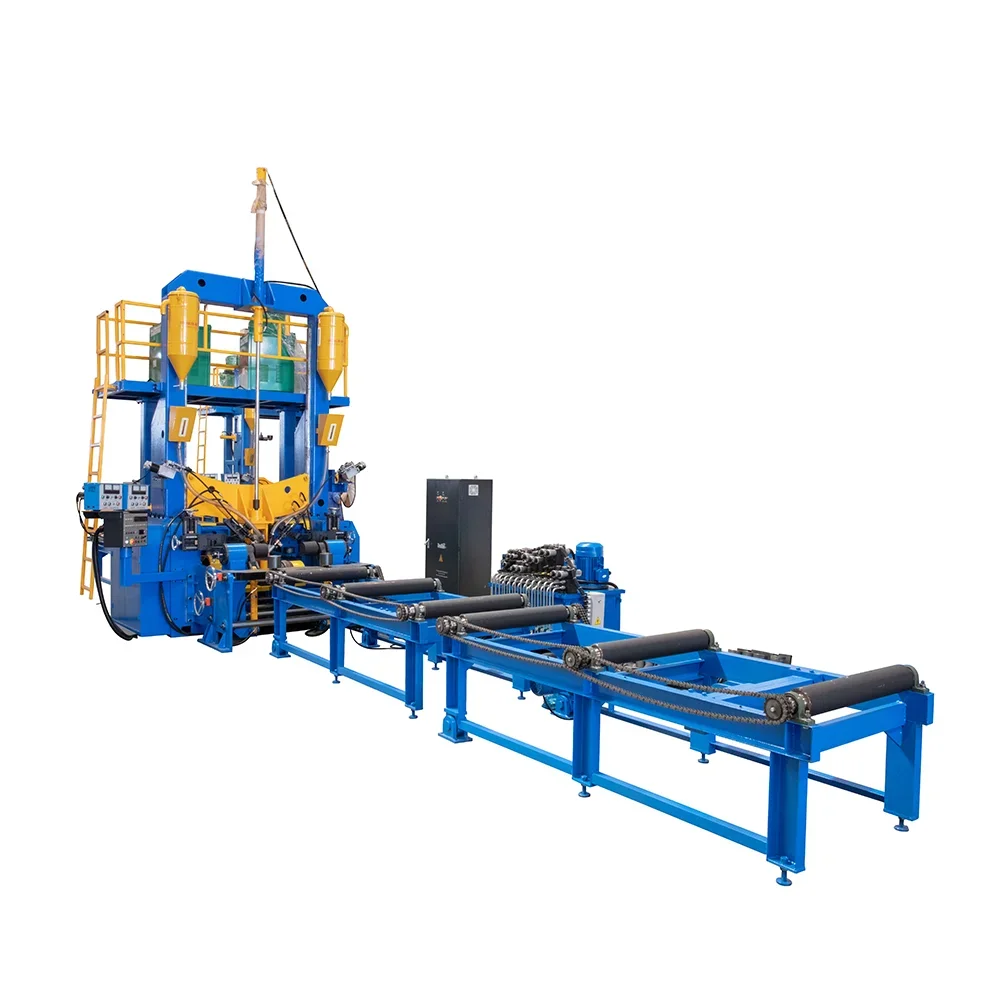

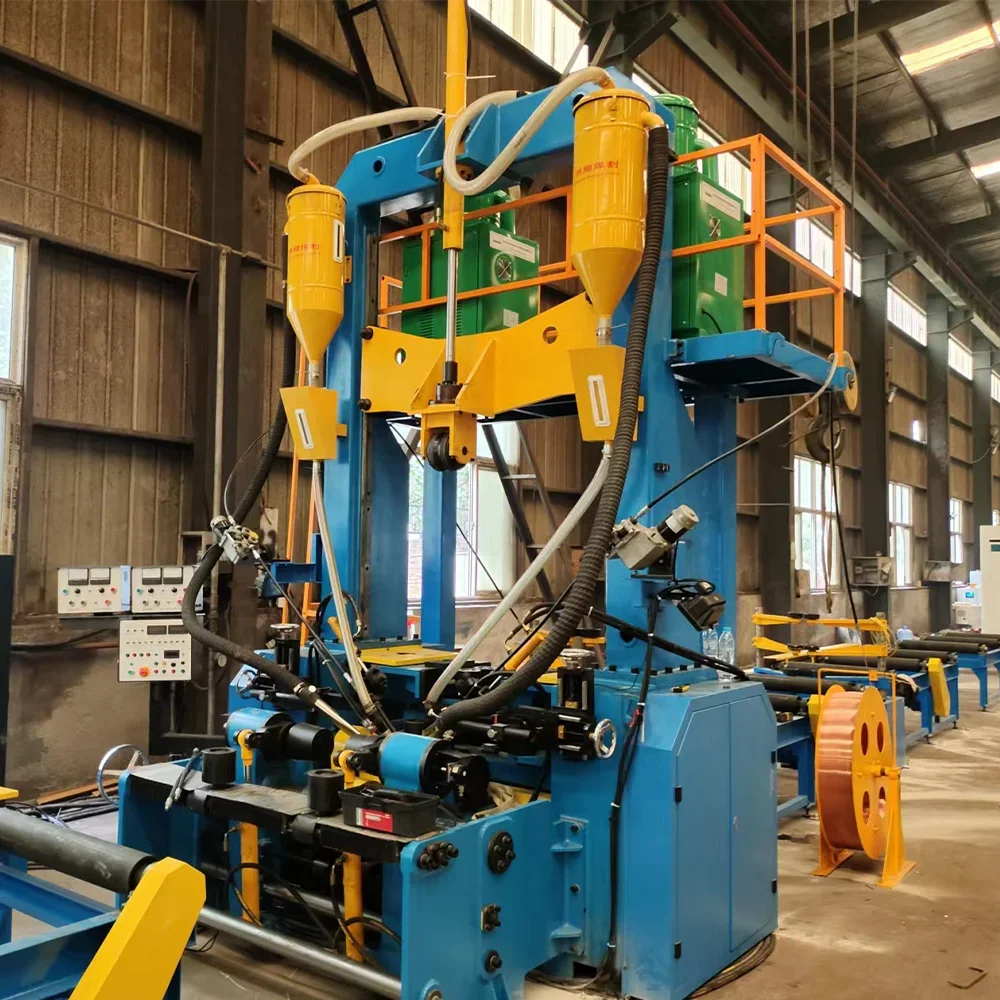

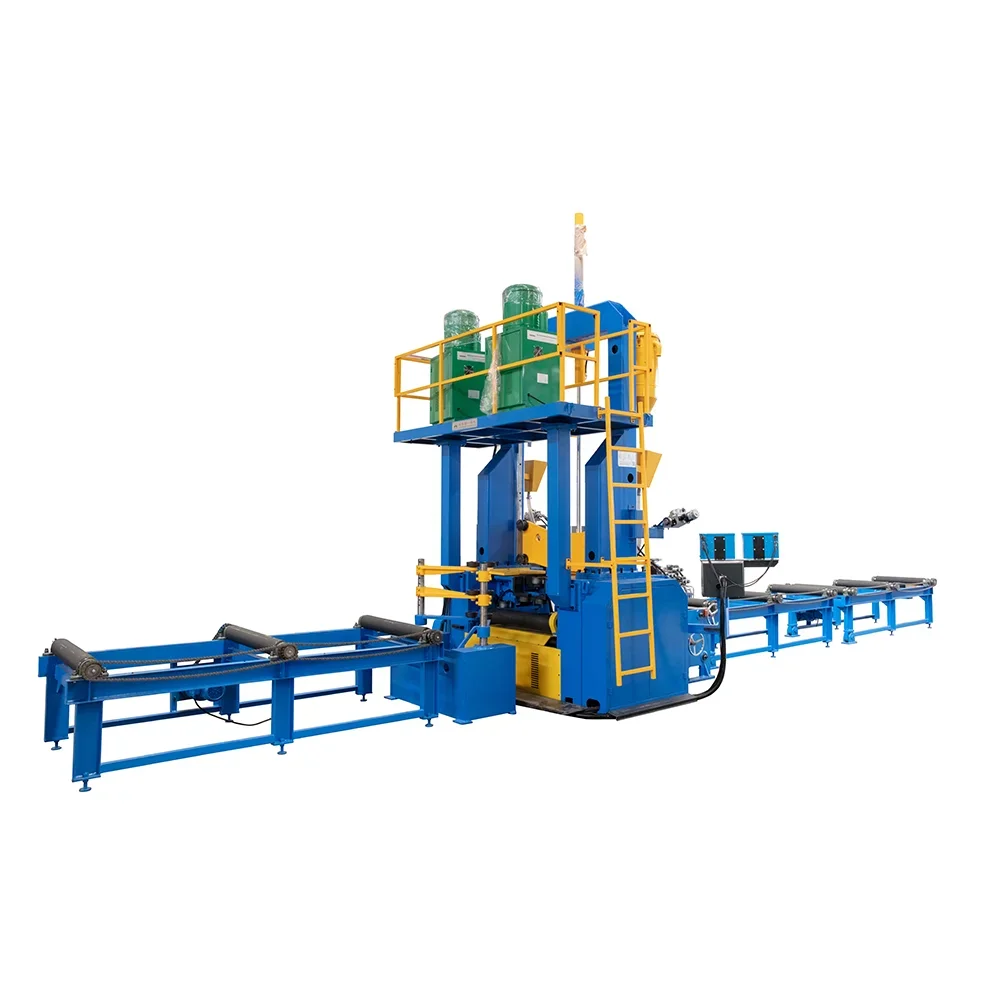

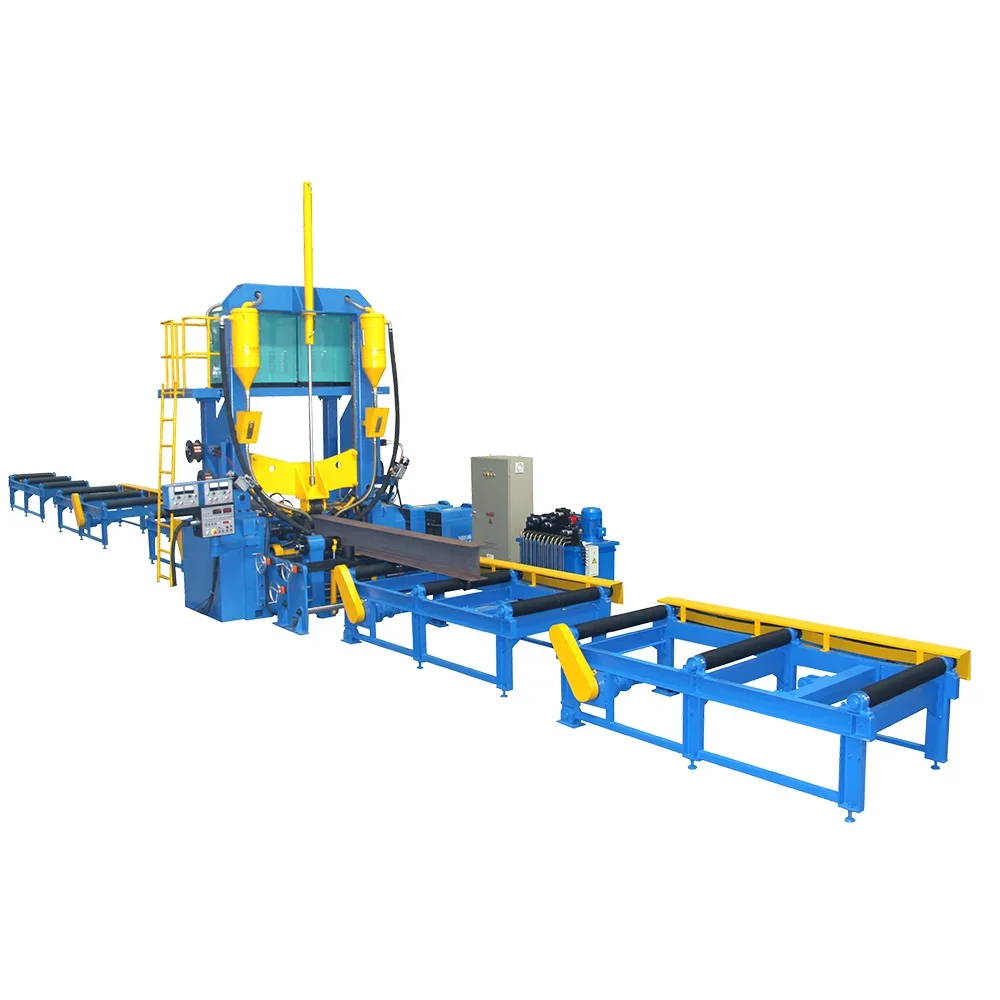

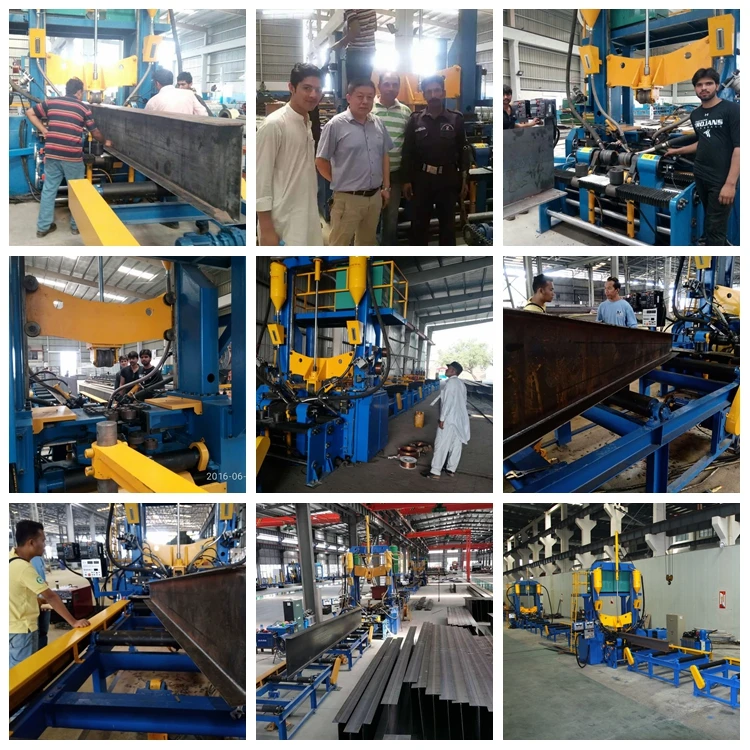

H-beam vertical assembling, welding and straightening multi-function integrated machine is a high-efficiency equipment for the production of welded H-beams. It can simultaneously complete H-beam assembly, submerged arc welding, and flange plate welding deformation on the same machine.The machine occupies a small area which can save installation space. It saves the hoisting and turning time between each process with single machine,then the efficiency is greatly improved, and the cost is reduced. It is a high-tech, economical and practical H-beam production equipment.

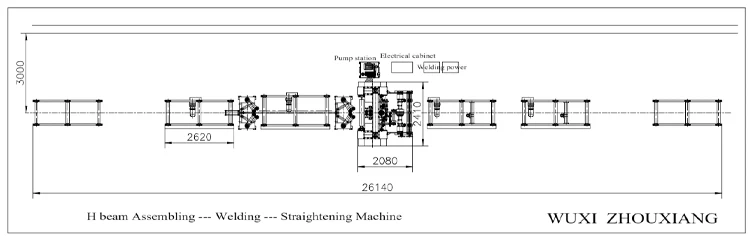

H beam assembling, welding, straightening machine
Metric units：
Web plate height |
160~1500 mm | |
Web plate thickness |
6~16 mm | |
Flange plate width |
50~800 mm | |
Flange plate thickness |
6~20 mm | |
H beam length |
6000~15000mm or as user’s request | |
Assembly and welding speed |
0.35~3 m/min | |
Main machine power |
0.55kw*4=2.2kW | |
Roller conveyor motor power |
4 kW | |
Flux recycling machine motor power |
3kw*2=6 kW | |
Pump station power |
4 kW | |
Welding source power |
69kW*2=138kW | |
Above are our standard model, it can be designed and manufactured according to customer’s request. | ||
Product Advantages

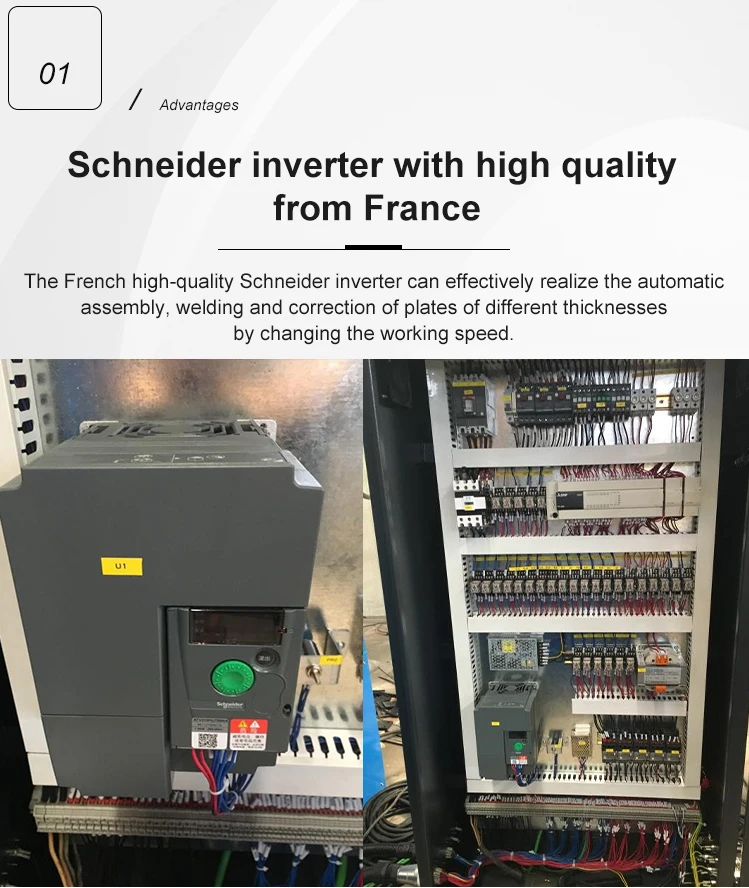

The French high-quality Schneider inverter can effectively realize the automatic assembly, welding and correction of plates of different thicknesses by changing the working speed.

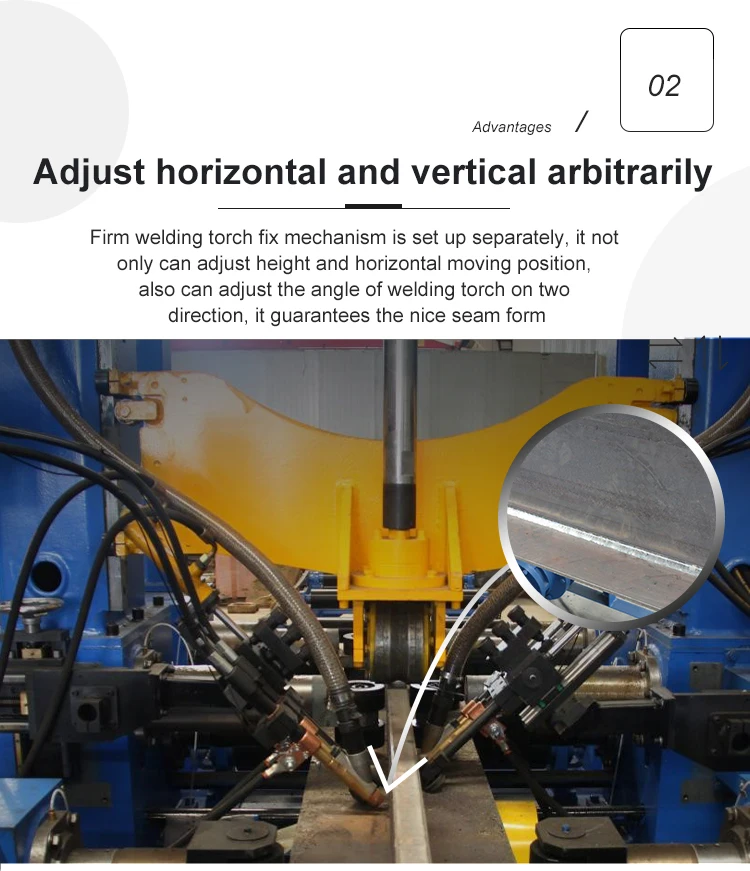

Firm welding torch fix mechanism is set up separately, it not only can adjust height and horizontal moving position, also can adjust the angle of welding torch on two direction, it guarantees the nice seam form.

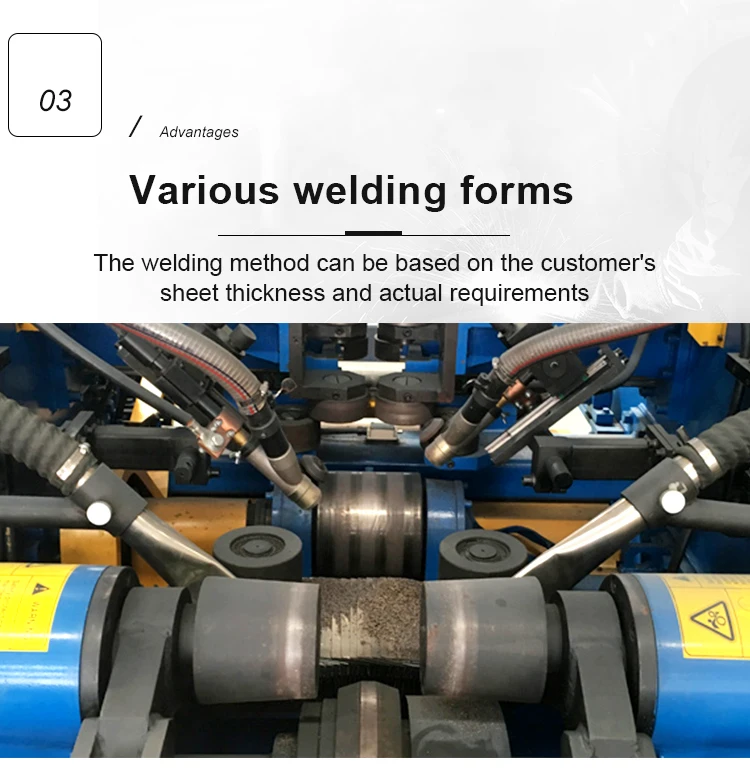

Various welding forms, generally single-arc single-wire submerged arc welding or single-arc double-wire submerged arc welding; according to the customer’s sheet thickness and actual requirements, CO2 gas shielded welding can also be used.
Details

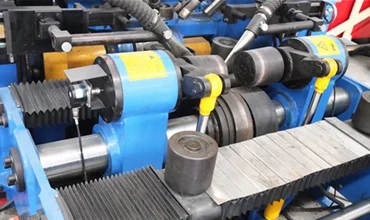

Flange and web centering device driven by hydraulic motor for automatic centering

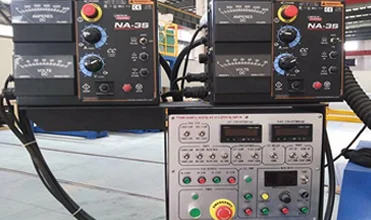

American Lincoln welding power source DC-1000 and NA-3S control system can ensure the forming quality of welding seam, especially
the welding leg forming of fillet welding seam, which is easy to use
the welding leg forming of fillet welding seam, which is easy to use

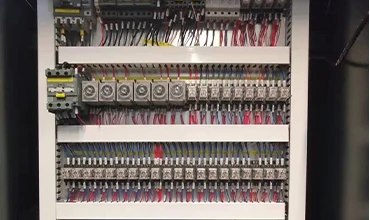

Standardized wiring method is neat and uniform, which greatly facilitates the operation and maintenance of customers.

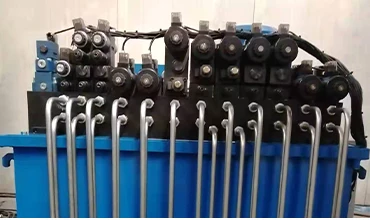

High-quality hydraulic valves can precisely and effectively control the clamping and loosening of each web and wing plate.
