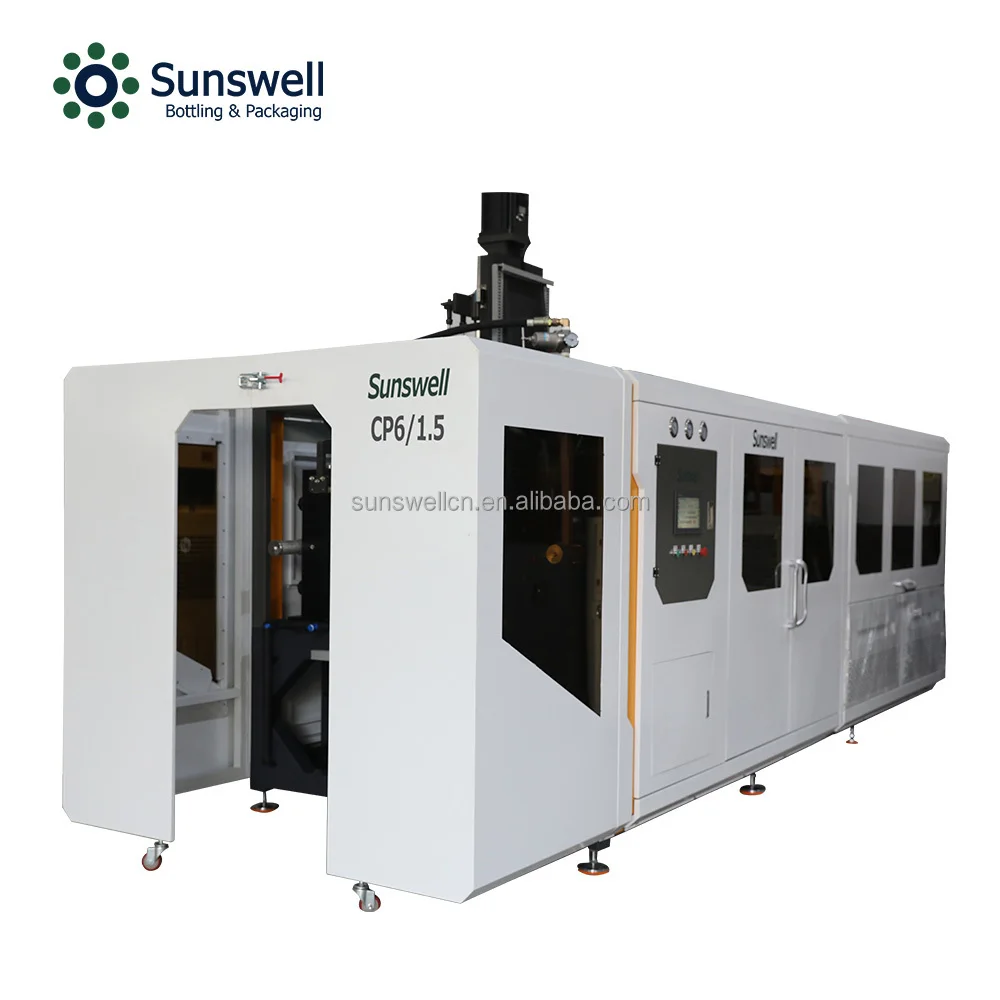

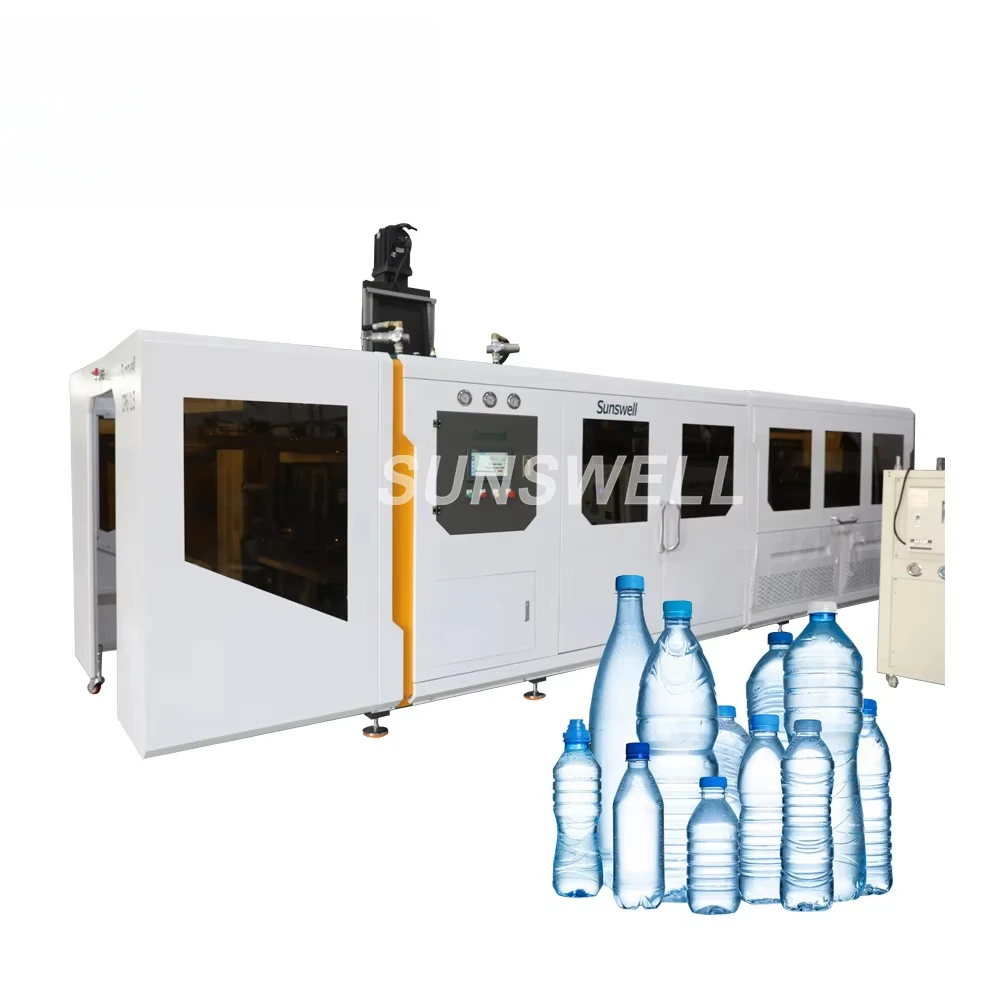

This SSW-R series model of fully automatic rotary heating stretch blow molding machinery is specially designed for high speed based on absorbing all international latest technology, it is an economic two stage automatic stretch blow molding machine, mainly used for PET stretch blow bottles. The machine consumes less power due to optimized machine layouts and patented preform heating system, so the end of user can achieve maximun profit in today’s competitive bottle molding market.
Main Features

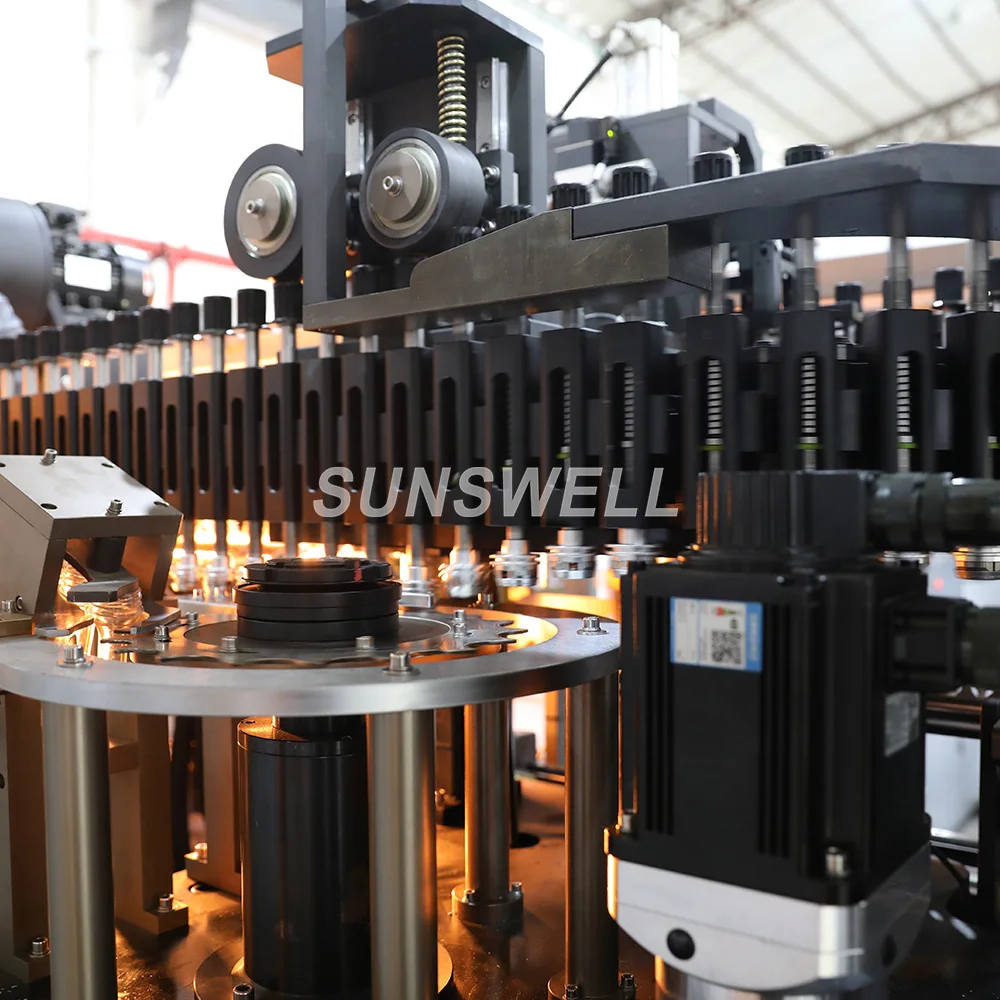

1. Preform feeding system: Single channel preform feeding and starwheel preform feeding are adopted, which effectively solves the problem of preform blocking and wearing.2. Revolution system: It adopts special chain and is driven by servo motor, so that the heating unit can move smoothly, with fast positioning and low noise.

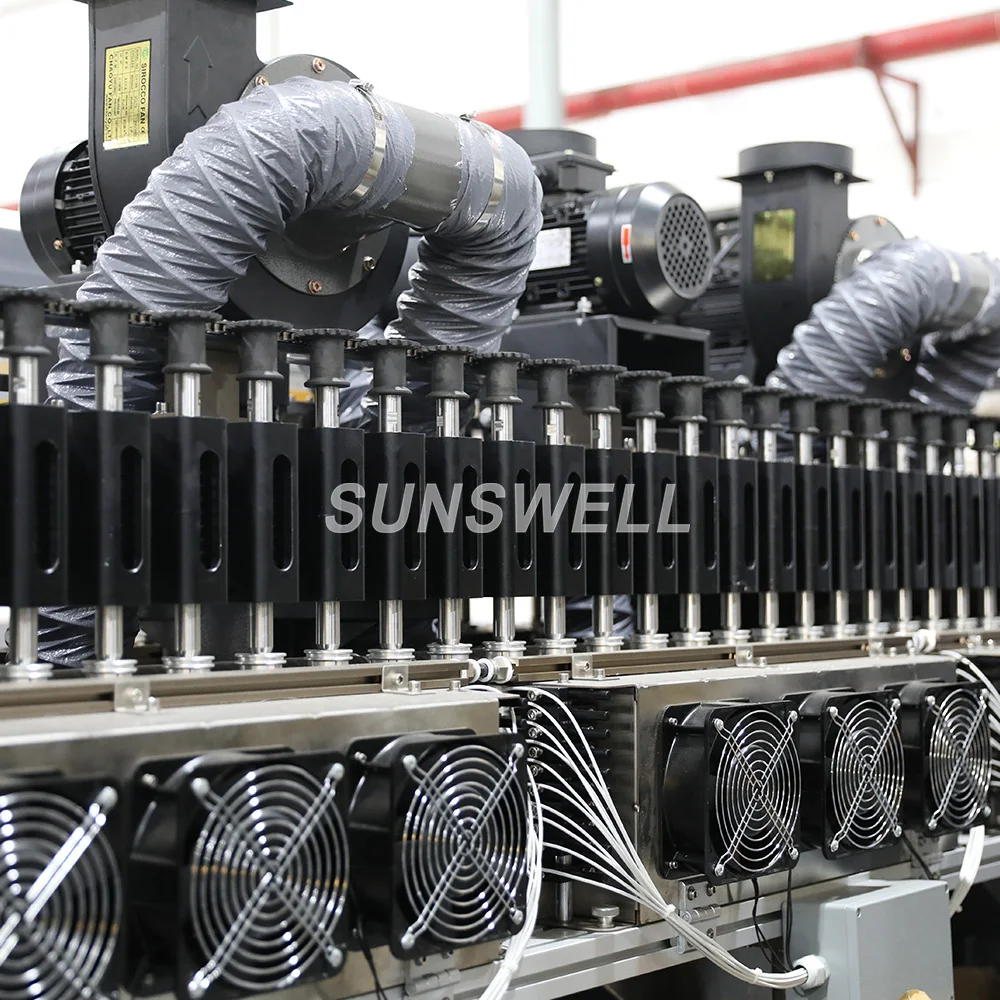

3. Heating system: Heating and conveying in the mode of rotary blow molding machine can reduce energy consumption and greatly improve the speed and quality of heating.

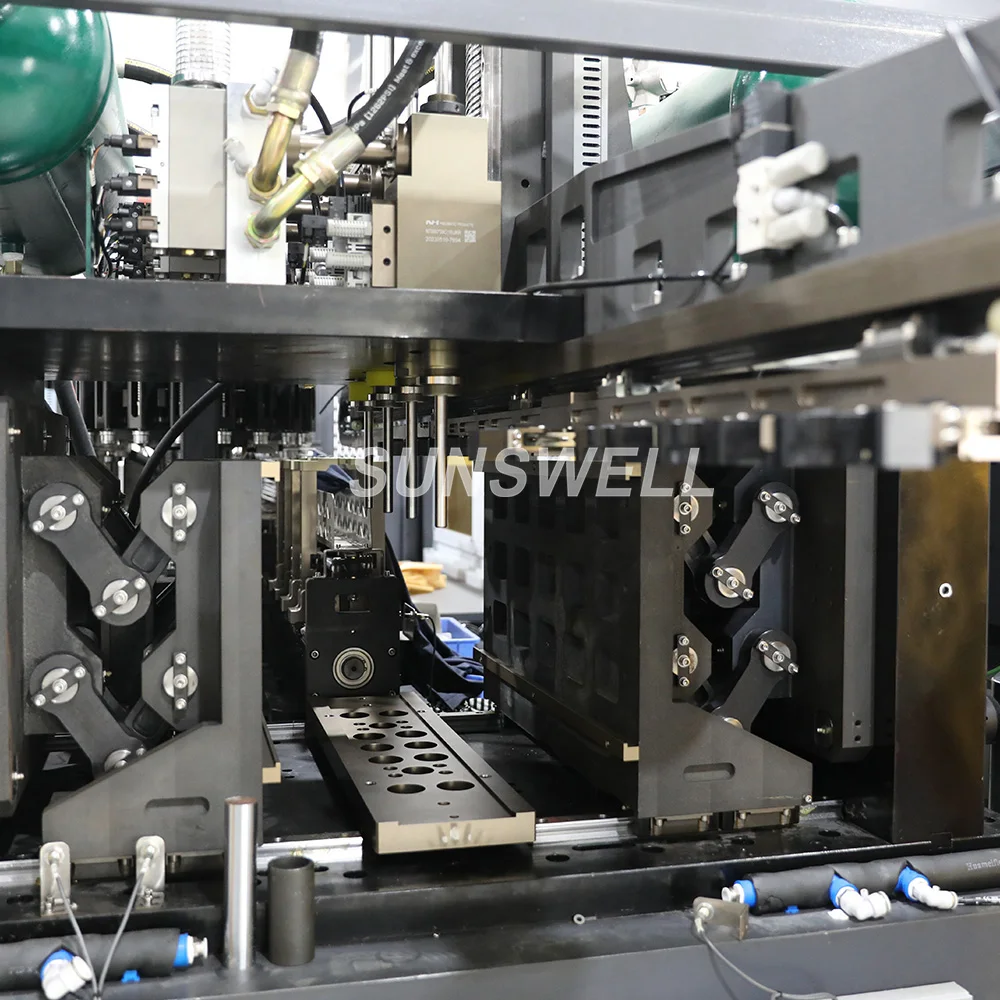

4. Mold system: high pressure mold clamping technology is adopted, there is no mold expansion phenomenon, and the mold clamping line is thin. The mold adopts drawer structure, and is positioned with four fixed tie rods on the mold back panel, which can be easily replaced within half an hour.

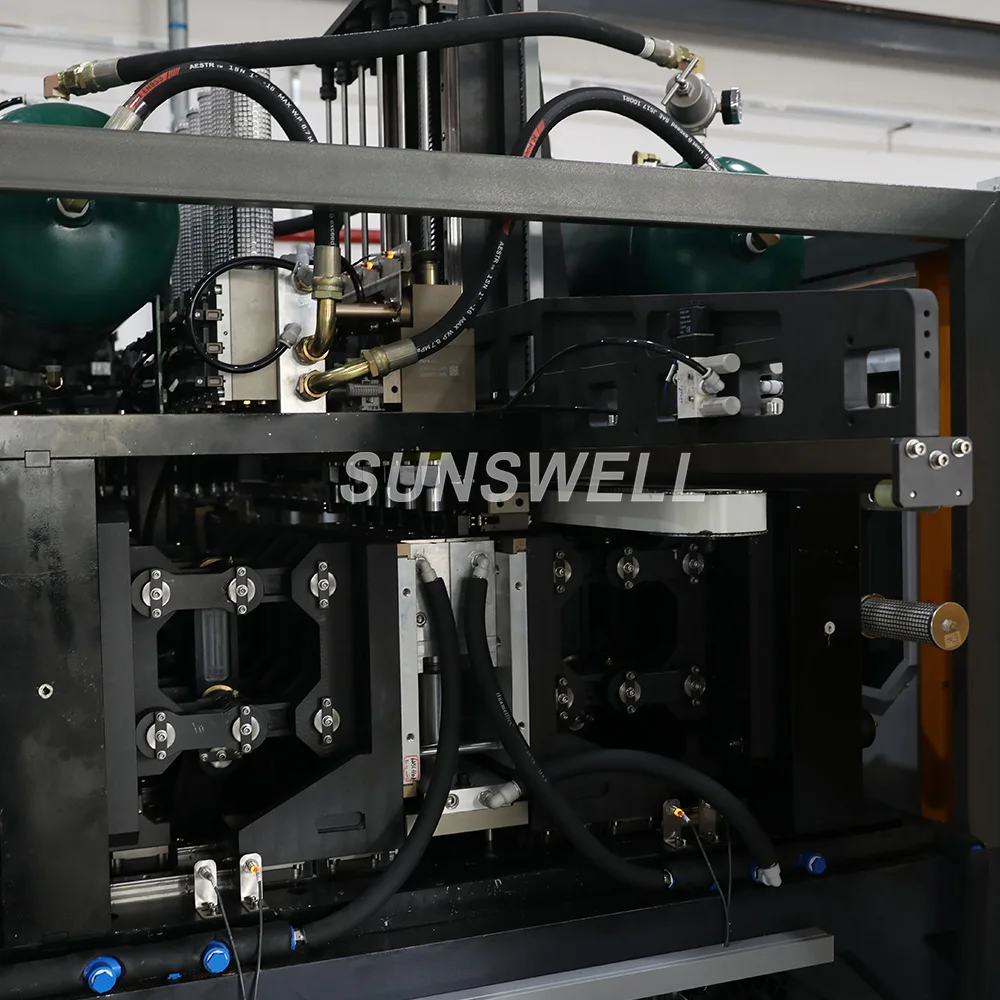

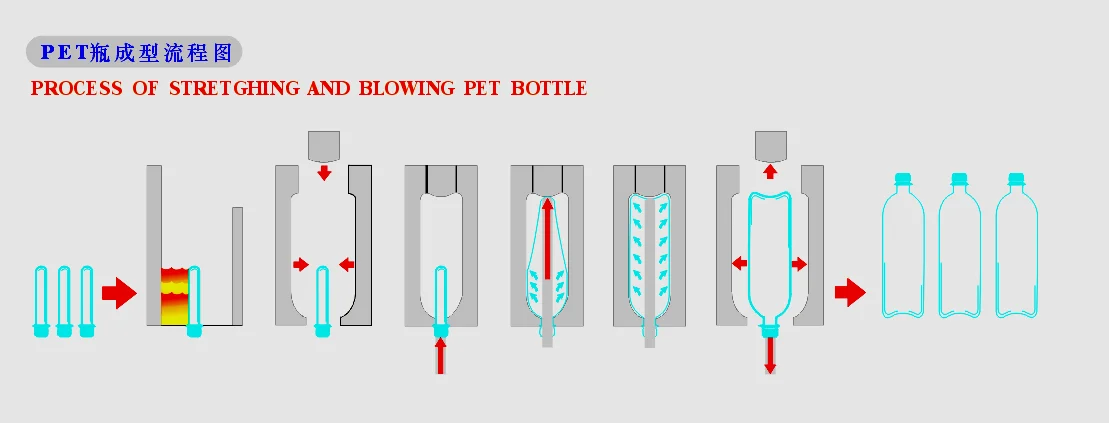

5. Stretch blow system: the cycle time of the first blow and the second blow can be adjusted. According to the customer’s
different preforms and different bottle types, each rod can be adjusted individually, with high flexibility.
6. Electric control system: Pneumatic and electrical components are from internationally renowned brands. The touch screen control system is easy to operate, has perfect monitoring and induction settings, has fault diagnosis functions, and automatically calculates reports to master the production efficiency of each shift.
7. Cooling/chilled water circulation system: There is a cooling water channel under the heating box. When the preform is heated, the cooling water channel is used to block the heat of the lamp tube and protect the teeth from deformation. Chilled water leads to the mold, which cools the mold quickly and improves the production efficiency of the whole machine.
3. Heating system: Heating and conveying in the mode of rotary blow molding machine can reduce energy consumption and greatly improve the speed and quality of heating.
4. Mold system: high pressure mold clamping technology is adopted, there is no mold expansion phenomenon, and the mold clamping line is thin. The mold adopts drawer structure, and is positioned with four fixed tie rods on the mold back panel, which can be easily replaced within half an hour.
5. Stretch blow system: the cycle time of the first blow and the second blow can be adjusted. According to the customer’s
different preforms and different bottle types, each rod can be adjusted individually, with high flexibility.
6. Electric control system: Pneumatic and electrical components are from internationally renowned brands. The touch screen control system is easy to operate, has perfect monitoring and induction settings, has fault diagnosis functions, and automatically calculates reports to master the production efficiency of each shift.
7. Cooling/chilled water circulation system: There is a cooling water channel under the heating box. When the preform is heated, the cooling water channel is used to block the heat of the lamp tube and protect the teeth from deformation. Chilled water leads to the mold, which cools the mold quickly and improves the production efficiency of the whole machine.

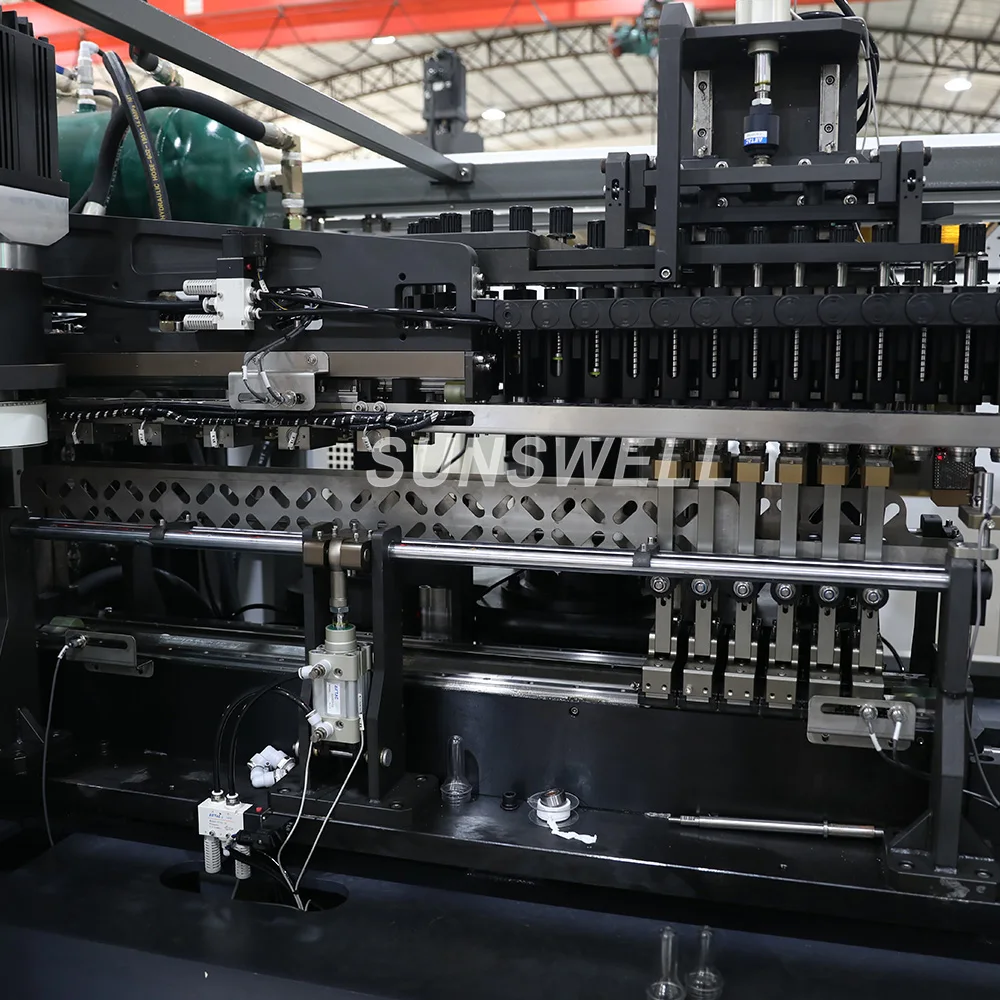

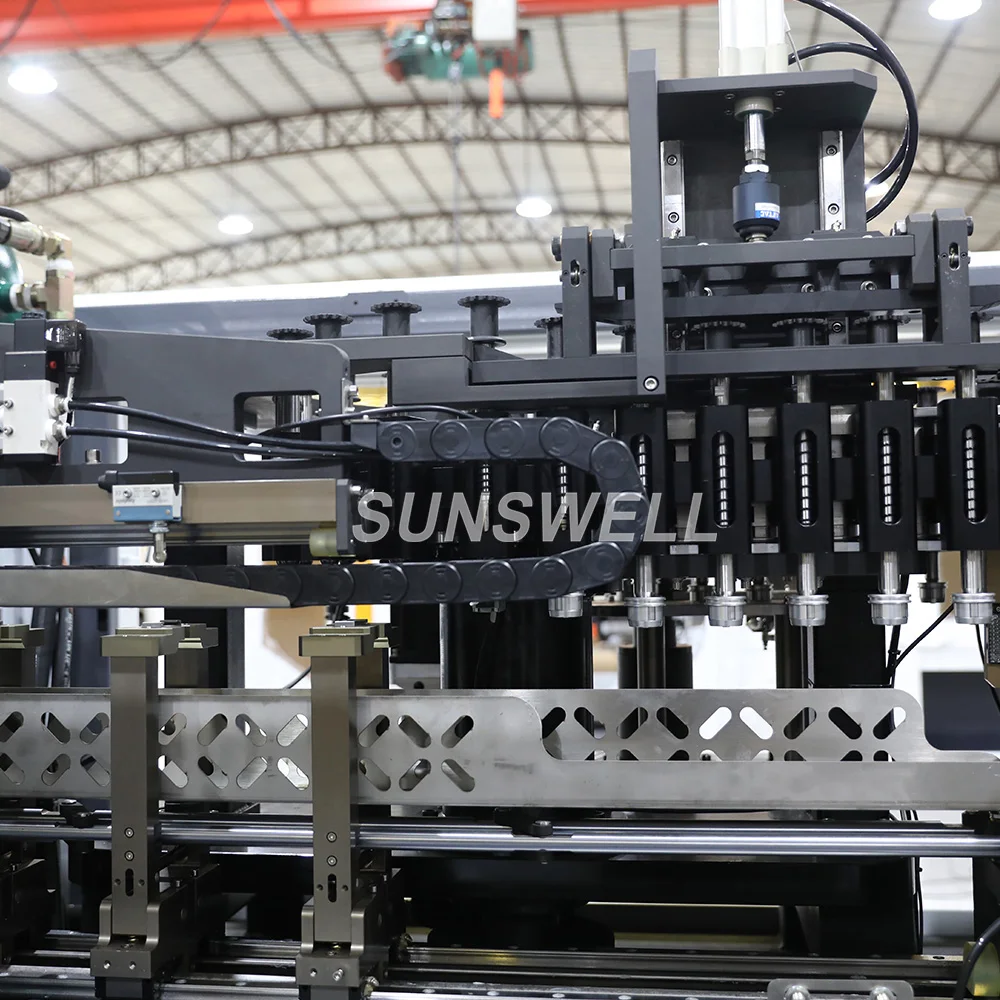

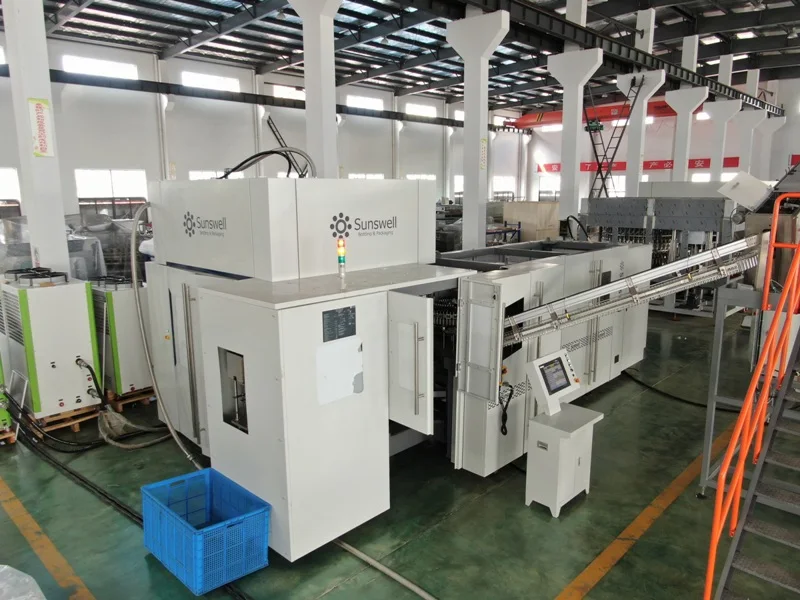

Detailed Images
Technical Parameters
System | Item | Parameter |
Mold part | Maximum diameter (mm) | 103 |
Bottle neck size (mm) | 18-38 | |
Maximum height (mm) | 340 | |
Preform maximum height (mm) | 165 | |
Mold clamping distance (mm) | 125 | |
Bottom mold distance (mm) | 50 | |
Pitch (mm) | 110 | |
Capacity (BPH) | 12000 | |
Cavity | 6 | |
Heating part | Heating unit | 6 |
Heating lamp layers | 8 | |
Preform seat no. | 156 | |
Electrical parameter | Voltage | 380V |
Frequency | 50/60Hz | |
Use power | 30-40kw | |
Installed power | 100kw | |
Compressed air (high pressure consumption is subject to PET bottle volume) | Low pressure compressed air pressure | 1Mpa |
Low pressure compressed air consumption | 1.0m3/min | |
High pressure compressed air pressure | 3.0Mpa | |
High pressure compressed air consumption | 10m3/min | |
Cooling water (water temp. ≤18℃) | Pressure | 2-4bar |
Flux | 6m3/h | |
Weight | Machine/heating machine/electric control cabinet, etc. | About 7.5T |
Dimension | Machine (L×W×H) | 5000×2300×2900mm |
Preform sorter (L×W×H) | 2950×2120×3200mm |
Main Configuration
No. | Item | Origin | Brand | |||
Electrical/Control Components | ||||||
1 | Air switch | France | Schneider | |||
2 | Intermediate replay | Japan | Ormon | |||
3 | Contactor | France | Schneider | |||
4 | Button | France | Schneider | |||
5 | Control switch | France | Schneider | |||
6 | Magnetic switch | Taiwan | Airtac | |||
7 | Touch screen | Taiwan | Delta | |||
8 | Motion controller | Taiwan | Delta | |||
9 | Servo | Taiwan | Delta | |||
10 | Cylinder | Taiwan | Airtac | |||
Valves/Connectors | ||||||
1 | First blow valve | UK | Norgren | |||
2 | Second blow valve | |||||
3 | Drain valve | |||||
4 | Cylinder control valve | Taiwan | Airtac | |||
5 | Mold clamping rail | Korea | Won | |||
